Switching Power Supply Module - 5V, 700mA
$0.8000
In stock
SKU
BAT-02-068
Volume discounts:
- +50 5 % $0.7600
- +100 6 % $0.7500
- +300 9 % $0.7300
- +500 11 % $0.7100
- +1000 14 % $0.6900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Switching Power Supply Module - 3.3V, 600mA Previous

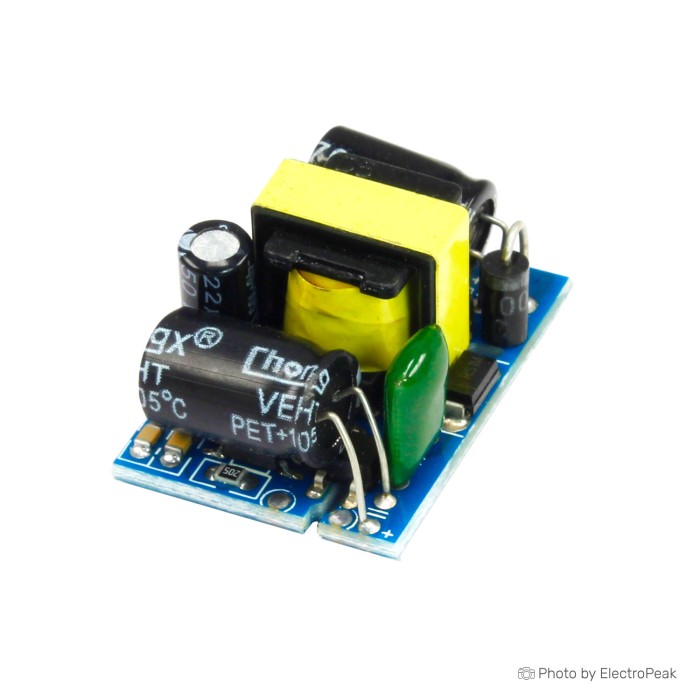

Switching Power Supply Module - 5V, 700mA is a compact power supply module for stable 5V output. It supports a wide input voltage range and is suitable for low-power electronics projects. The module includes protection features for temperature, overcurrent, and short circuit conditions. Its small size makes it suitable for space-limited installations.
Features of Switching Power Supply Module - 5V, 700mA
- Wide input voltage range
- Stable 5V output
- 700mA maximum output current
- Temperature protection
- Overcurrent protection
- Short circuit protection
- Compact size
Specifications of Switching Power Supply Module - 5V, 700mA
- Input voltage: AC 85 ~ 265V or DC 100 ~ 370V
- Input current: 0.0273A (AC110V) / 0.014A (AC220V)
- Inrush input current: 20A
- Output voltage: 5V
- Output current: 0 to 700mA
- Peak current: 800mA
- Output power: Max 5.2W
- Output power: 4.8W (typical)
- Output ripple: 60mV
- Switch over shoot: 10%
- Output rise time: 100ms
- Dimensions: 30x20 mm
- Operating temperature: -20 to 60 degrees Celsius
- Humidity: 40 to 90% RH
How to Use Switching Power Supply Module - 5V, 700mA
- Check that the input voltage is within the specified range.
- Connect the module to the power source and load.
- Verify stable 5V output during operation.
More Info
- Designed for low-power electronic applications
- Compact form factor for limited-space projects
