Laser Module - 5V, 650nm
$0.2700
In stock
SKU
misc-02-017
Volume discounts:
- +100 4 % $0.2600
- +500 7 % $0.2500
- +5000 11 % $0.2400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

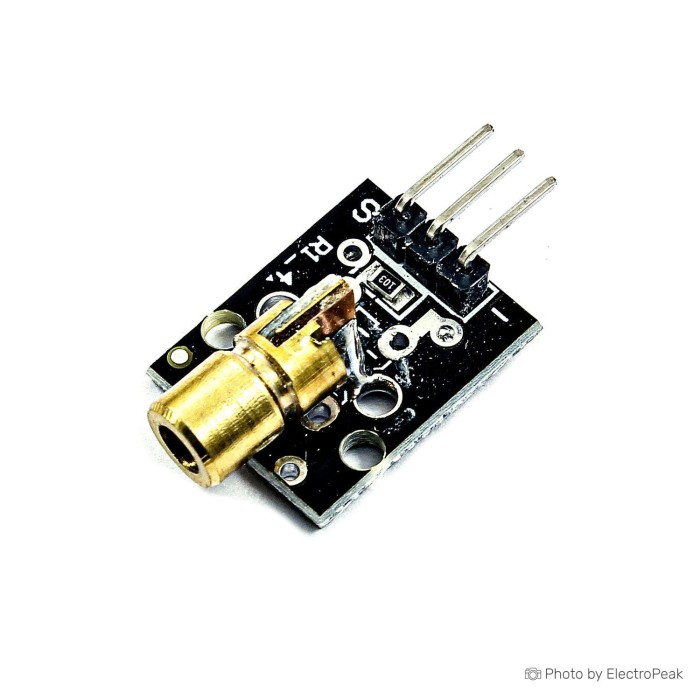

The Laser Module - 5V, 650nm is a breadboard friendly laser diode module with an assembled head and direct 5V DC operation. It includes a light-emitting tube, condenser lens, and adjustable copper sleeve. The lens focal length is adjusted and secured with strong glue stick. This laser module is designed for direct use after connecting to a 5V DC power supply.
It features a low-cost, compact laser diode module design for electronics and robotics projects. The module supports laser test tools, concentricity positioning, medical equipment positioning, production of signal equipment, DIY or robots, level meters, laser projector, and laser toys. Attention should be paid to the laser cell to prevent burning or battery explosion due to a short circuit when removing the battery.
Features of Laser Module - 5V, 650nm
- Breadboard friendly design
- Assembled laser head
- Direct 5V DC operation
- 650nm wavelength
- APC circuit driver
- Low-cost module
Specifications of Laser Module - 5V, 650nm
- Voltage: 3.0 V - 5 V
- Driver: APC circuit
- Line length: about 135 mm
- Transmit power: 58mW
- Operating Current: 40mA
- Operating temperature: -36—¦C ~ 65—¦C
- Wavelength: 650nm
- Operating voltage: 5V
How to Use Laser Module - 5V, 650nm
- Connect the module to a 5V DC power supply.
- Use it after power is applied.
More Info
- Includes a light-emitting tube, condenser lens, and adjustable copper sleeve
- Lens focal length is adjusted and secured with strong glue stick
