4-Channel SSR Solid State Relay Module - 5V

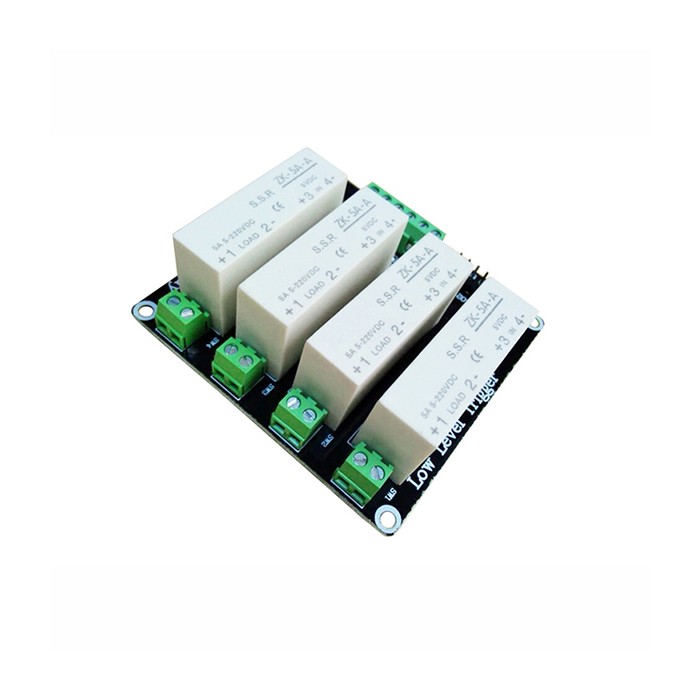

The 4-Channel SSR Solid State Relay Module - 5V, 5A is a solid state relay module with four channels and a 3.3-5VDC power supply. It is built with FR-4 double-sided printed circuit boards and uses high-quality 2A semiconductor relays. The input and output use KF128-3.81 terminal blocks for convenient wiring. The circuit includes an SS8050 1.5A high current transistor for more stable quality. The board also includes four screw fixed holes. Triggering is pulse-based, with 0-2VDC for relay ON, 3.5V for relay OFF, and 2.5V as an unknown state. The load current specification is 5-220VDC 5A, DC only.

Features of 4-Channel SSR Solid State Relay Module - 5V, 5A

• Four-channel output
• 3.3-5VDC power supply
• FR-4 double-sided PCB
• 2A semiconductor relays
• KF128-3.81 terminal blocks
• SS8050 1.5A transistor
• Four screw fixed holes
• Pulse trigger mode

Specifications of 4-Channel SSR Solid State Relay Module - 5V, 5A

• Power supply: 3.3-5VDC
• Current: 5A
• Channel count: 4
• Trigger mode: pulse trigger
• Relay ON: 0-2VDC
• Relay OFF: 3.5V
• Unknown state: 2.5V
• Load current: 5-220VDC 5A
• Load type: DC only

How to Use 4-Channel SSR Solid State Relay Module - 5V, 5A

1. Connect the power supply within the 3.3-5VDC range.
2. Wire the input and output through the KF128-3.81 terminal blocks.
3. Apply the trigger signal according to the ON and OFF voltage levels.

More Info

• Solid state relay design
• Board with four screw fixed holes
• Suitable for DC load switching
