2-Channel Relay Module - 5V

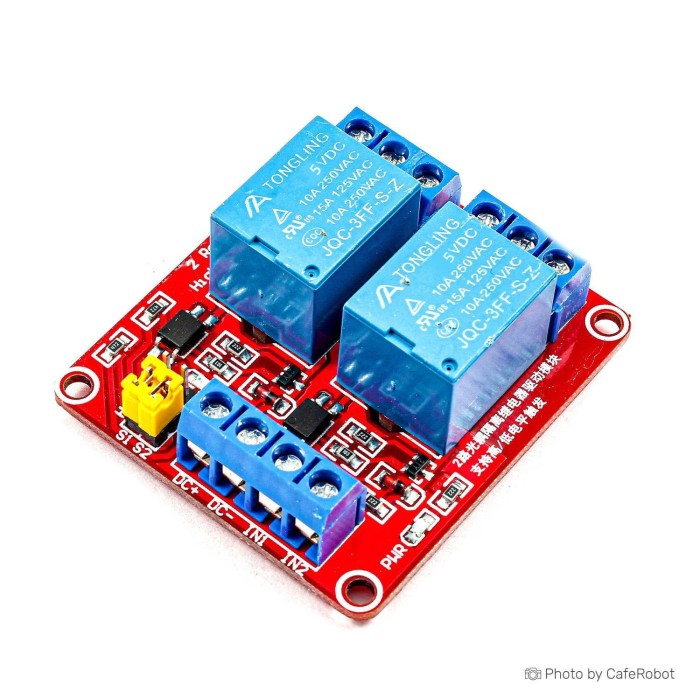

2-Channel Relay Module is a 5V relay module designed for electrical switching applications. It includes status indicator LED support and clearly labeled control and relay output terminals. The module provides relay contact ratings for different load conditions and uses a high/low level trigger selection. Use it as a relay module for electronic control and switching projects.

Features of 2-Channel Relay Module - 5V, 15A 125VAC / 10A 250VAC

• 2-channel relay output
• 5V operating voltage
• Status indicator LED
• High and low level trigger selection

Specifications of 2-Channel Relay Module - 5V, 15A 125VAC / 10A 250VAC

• Output contact capacity: 15A 125VAC / 10A 250VAC
• Voltage: 5V
• Board dimensions: 5 * 4.1 * 1.8cm
• Weight: 33 grams
• DC+: positive supply
• DC-: negative
• IN: high or low level relay control
• NO: normally open relay interface
• COM: common interface relays
• NC: normally closed relay interface
• LOW: level-triggered when the jumper is shorted
• HIGH: triggered when the jumper is shorted

How to Use 2-Channel Relay Module - 5V, 15A 125VAC / 10A 250VAC

1. Connect DC+ and DC- to the required supply.
2. Apply a high or low level signal to IN.
3. Use NO, COM, and NC as the relay output interfaces.

More Info

• Relay operation is based on electromagnetic switching.
• For exact working values of similar relay models, consult the relevant datasheet.
