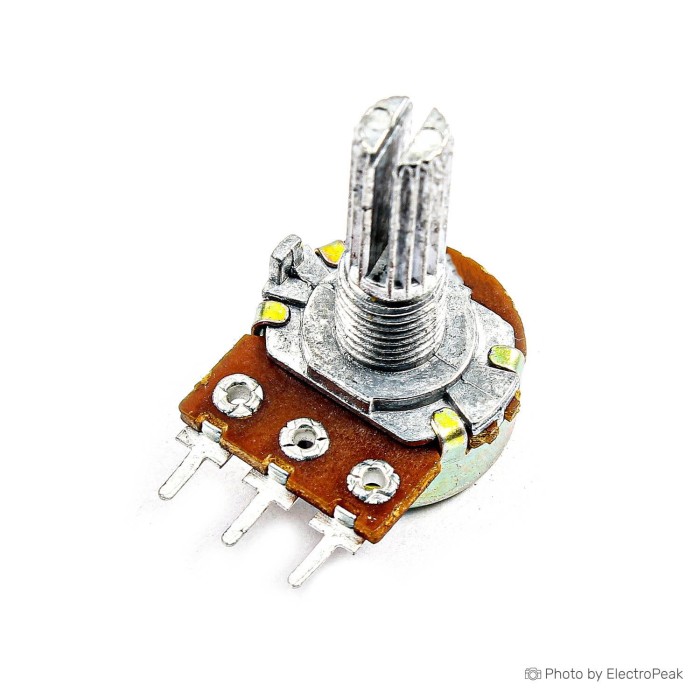

Rotary Potentiometer - 5k Ohm
|+100 9 % $0.10|
|+500 9 % $0.10|
|+1000 9 % $0.10|
|+5000 9 % $0.10|
|+10000 18 % $0.09|
A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat. The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage). the component is an implementation of the same principle, hence its name. Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment. Potentiometers operated by a mechanism can be used as position transducers, for example, in a joystick. Potentiometers are rarely used to directly control significant power (more than a watt), since the power dissipated in the potentiometer would be comparable to the power in the controlled load.
- A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.
- Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.
- Through hole DIP mounting type.
- Single turn design cermet potentiometer, square linear.
- Quantity: 10pcs
