TCRT5000 5 Way Infrared Line Tracking Sensor Module
$1.5000
In stock
SKU
SEN-19-014
Volume discounts:
- +50 4 % $1.4400
- +100 6 % $1.4100
- +300 8 % $1.3800
- +500 10 % $1.3500
- +1000 13 % $1.3100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM393 Motor Speed Measuring Sensor Module Previous

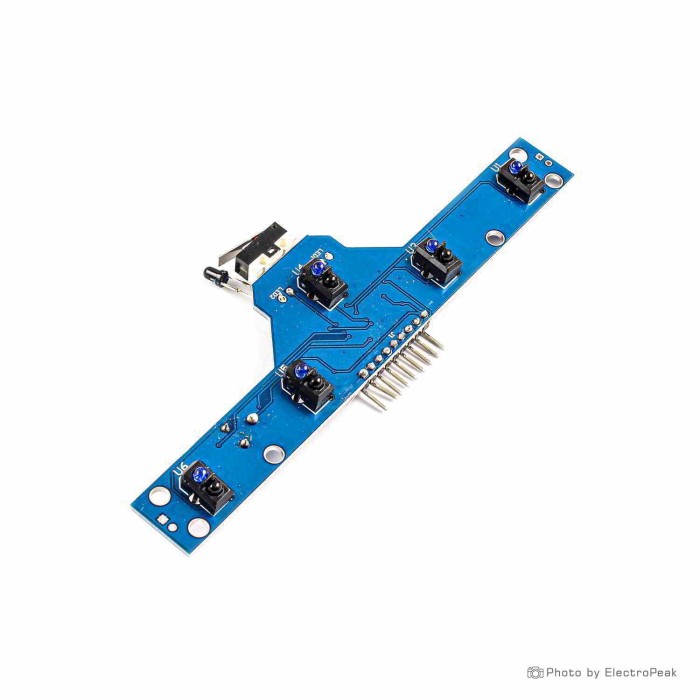

TCRT5000 5 Way Infrared Line Tracking Sensor Module is a 5-channel infrared line tracking module for robotics and electronics projects. It includes 5 infrared sensors with TCR5000 transmitters and receivers for line detection. The module is designed for black line tracking and obstacle detection. Each channel has a separate LED to show its status. Sensitivity is adjustable for different tracking conditions. The module also includes a touch or impact detection sensor. It provides digital output and is suitable for Arduino mobile robot projects. The module comes with an M3 flexible mounting slot.
Features of TCRT5000 5 Way Infrared Line Tracking Sensor Module
- 5 infrared sensing channels
- Adjustable sensitivity
- Digital output
- Separate status LED for each channel
- Touch or impact detection sensor
- M3 flexible mounting slot
Specifications of TCRT5000 5 Way Infrared Line Tracking Sensor Module
- 5-way reflective optical sensors mounted in line
- TCRT5000 or equivalent
- TCR5000 transmitters and receivers
- Sensitive to dark color and infrared
- Operating voltage: 3 to 5.5 V
- Recommended operating voltage: 5 V
- Detection range for tracking: 0 to 4 cm
- Detection range for obstacles: 0 to 5 cm
- Digital output signal
- Dimensions: 130 x 50 x 10 mm
How to Use TCRT5000 5 Way Infrared Line Tracking Sensor Module
- Install the module on the robot chassis using the mounting slot.
- Connect the module to the control circuit.
- Adjust sensitivity as needed for line tracking or obstacle detection.
- Use the digital output for sensor reading and robot control.
More Info
- Suitable for line following robot projects
- Suitable for obstacle detection projects
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3-5.5V |
| Dimensions (mm) | 130x50x10 mm |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Accuracy | High precision |
| Detection Distance | 0-4 cm for tracking, 0-5 cm for obstacle detection |
| Sensing Method | Infrared (IR) |
| Chipset | TCRT5000 |
| Channels | 5-channel |
| Sensor Model | TCRT5000 |
| Signal Indicator | Signal output indicator |
