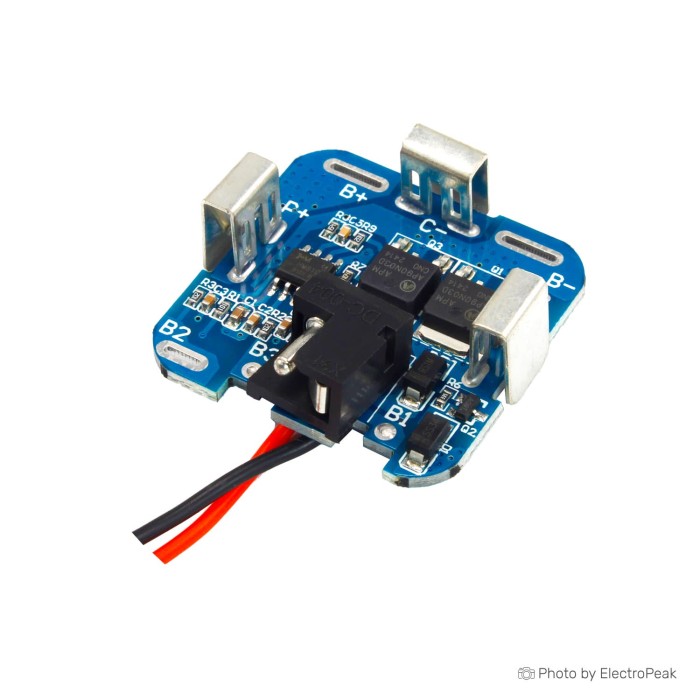

4S 14.8V 20A BMS 18650 Lithium Battery Protection Board Suitable for Drill Tools
The 4S 14.8V 20A BMS 18650 Lithium Battery Protection Board, model 1040-4SZC, is tailored for use in drill tools, electric vehicles, garden tools, power tools, and angle grinders. This protection board ensures your 4-series Li-ion battery packs operate safely and efficiently by providing robust protection against overcharge, over-discharge, short circuits, and over-current conditions. Designed with a compact form factor and durable construction, it maintains a nominal voltage of 16V and supports a maximum operating current of 9A, with a peak instantaneous current of 20A.
Specifications of 4S 14.8V 20A BMS 18650 Lithium Battery Protection Board
-
Model: 1040-4SZC
-
Nominal Voltage: 16V
-
Operation Voltage: 14.8V
-
Operation Current:
-
Maximum Operating Current: 7-9A
-
Maximum Instantaneous Current: 15-20A
-
-
Quiescent Current: <20uA
-
Internal Resistance: <30mΩ
-
Overcharge Voltage Range: 4.275V±0.035V
-
Over-discharge Voltage Range: 2.750V±0.08V
-
Overcharge Recovery Voltage: 4.075V±0.1V
-
Over-discharge Recovery Voltage: 2.9V±0.08V
-
Working Temperature: -40℃ to 80℃
-
Short Circuit Protection: Yes, with automatic recovery
-
Dimensions: 34 x 34 x 1.6 mm
-
Color: Green
-
Functions: Overcharge protection, over-discharge protection, short circuit protection, over-current protection
-
Suitable for: Electric vehicles, garden tools, power tools, angle grinders, etc.
