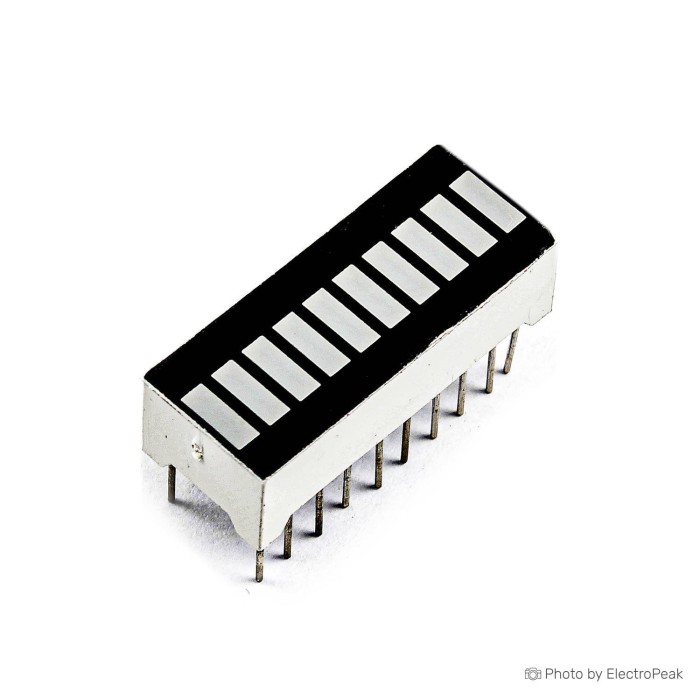

10 Segment 4 Color Light Bar Graph LED Display
$0.4100
In stock
SKU
ELC-16-029
Volume discounts:
- +500 2 % $0.4000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
7-Segment Display - 4-Digit, 0.56inch, Common Anode (Red) Previous
10 Segment 4 Color Light Bar Graph LED Display is an LED array for electronic circuits and microcontrollers. It provides a simple way to display output levels using a 10-segment light bar format. The display can be used for signal and power indication, as well as digital readout applications. It is available in four selectable colors: blue, green, yellow, and red. This LED Bar Graph is designed for straightforward connection in circuit builds and electronics projects.
Features of 10 Segment 4 Color Light Bar Graph LED Display - 2.2V, 25mA, 20 Pins
- 10-segment display
- 4 selectable colors
- Simple circuit connection
- LED array format
Specifications of 10 Segment 4 Color Light Bar Graph LED Display - 2.2V, 25mA, 20 Pins
- Working voltage: approximately 2.2V DC
- Current: 25mA
- Number of segments: 10
- Number of pins: 20
- Colors: blue, green, yellow, red
How to Use 10 Segment 4 Color Light Bar Graph LED Display - 2.2V, 25mA, 20 Pins
- Connect the LED Bar Graph to your electronic circuit or microcontroller.
- Use the 10 segments to display the required output level or status.
More Info
- Suitable for audio equipment panels.
- Suitable for instrument panels and digital readouts.
- Suitable for signal power and power status indication.
