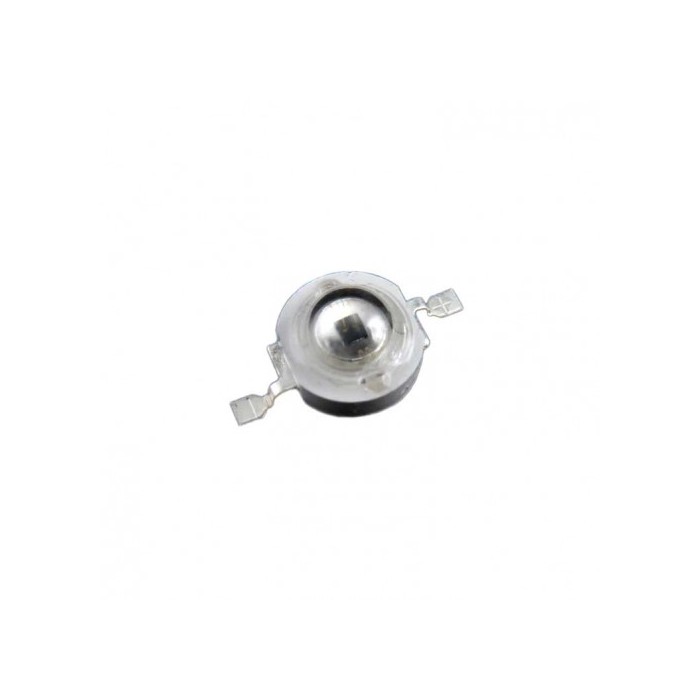

High Power Infrared LED Chip - 850nm, 3w

High Power Infrared LED Chip is an SMD infrared LED for illumination and infrared lighting applications. It is a 3W LED with a 140° viewing angle. The operating voltage is 1.8-2.2V, and the wavelength is 850nm. It is also listed with a 1.6-2.0V operating voltage, 700mA current, and an optional 740nm wavelength. This product is suitable for night imaging and infrared fill light use.

Features of High Power Infrared LED Chip - 850nm, 3W

• 3W infrared output
• 850nm wavelength
• SMD technology
• 140° light angle
• Infrared illumination use

Specifications of High Power Infrared LED Chip - 850nm, 3W

• Power: 3W
• Wavelength: 850nm
• Operating voltage: 1.8-2.2V
• Operating voltage: 1.6-2.0V
• Current: 700mA
• Light angle: 140°
• Technology: SMD
• Wavelength: 740nm / 850nm / 950nm

How to Use High Power Infrared LED Chip - 850nm, 3W

1. Connect the LED with the required operating voltage.
2. Use it in the intended infrared lighting setup.
3. Set the installation to match the 140° light angle.

More Info

• Infrared LED chip format
• High-power LED component
