Flat Vibrating Motor - 3V
$0.3600
In stock
SKU
MTR-07-001
Volume discounts:
- +100 3 % $0.3500
- +500 6 % $0.3400
- +1000 8 % $0.3300
- +5000 11 % $0.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
YwRobot Vibration Motor Module Previous

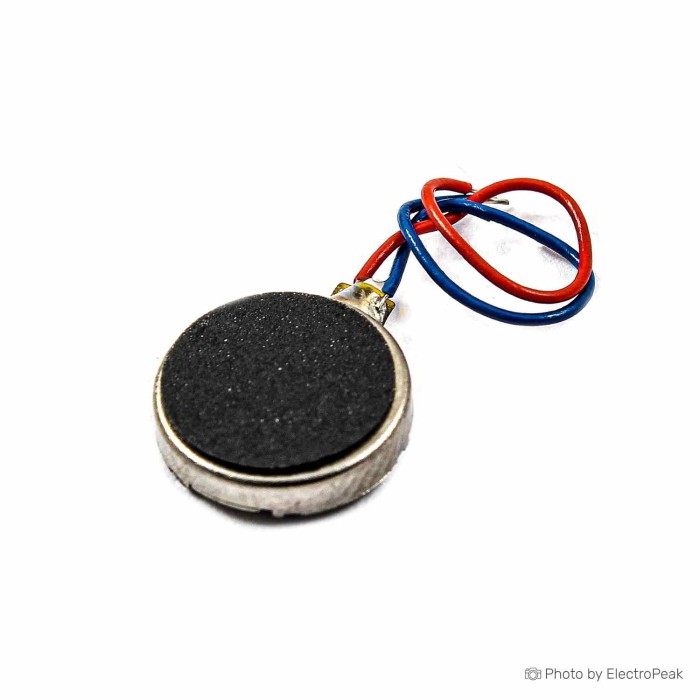

The Flat Vibrating Motor - 3V is a compact vibration motor designed for low-current operation and consistent vibration output. It uses voice coils to rotate an internal disc and generate vibration. The motor is available as a two-piece package and is suitable for electronic products and compact devices. Its specifications include a 3V DC rating, a 2.5-4V DC operating voltage range, and a 1020 model designation.
Features of Flat Vibrating Motor - 3V, 1020
- Compact vibration motor
- Low current consumption
- Voice coil drive
- Two-piece package
- 1020 model
Specifications of Flat Vibrating Motor - 3V, 1020
- Voltage: 3V DC
- Operating voltage: 2.5-4V DC
- Current: Maximum 70mA
- Starting current: Maximum 901mA
- Starting voltage: 2.3V DC
- Insulation resistance: Minimum 10MΩ
- Speed: 12000±2500 RPM
- Model: 1020
- Body size: 10 x 2.6mm
- Voltage: DC 3.0V
- Current: 80mA
- Speed: 9000
How to Use Flat Vibrating Motor - 3V, 1020
- Apply the specified DC voltage within the operating range.
- Install the motor in the target device.
- Use the vibration output as required by the application.
More Info
- Packaged as two units.
- Suitable for compact electronics.
