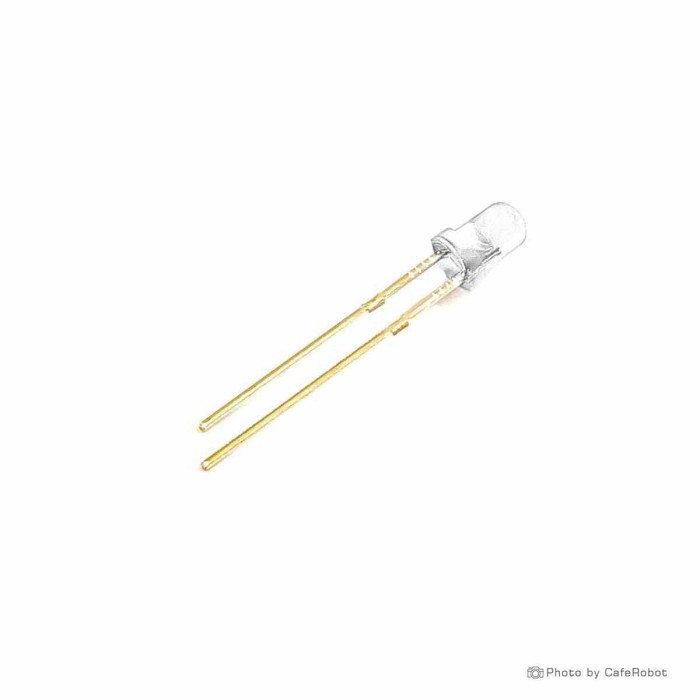

LED - White 3mm

The White 3mm LED is a compact LED for electronics, DIY projects, and electrical applications. It can be used for status indication, decoration, and other general lighting tasks. This LED is a light-emitting diode that conducts current in one direction. Its small size makes it suitable for a wide range of project and repair uses.

Features of White 3mm LED - 3-3.2V, 20mA

• White color
• 3mm diameter
• Normal brightness
• Diffused round top lens
• One-way current flow

Specifications of White 3mm LED - 3-3.2V, 20mA

• Diameter: 3 mm
• Color: White
• Brightness: Normal
• Voltage: 3-3.2 V DC
• Current: 20 mA
• Lens: Diffused Round Top
• Forward Voltage: 3.2-3.4V
• Forward Current: 20mA
• Color Temperature: 6000-6500k
• Luminous Intensity: 7000-9000mcd
• Power Angle: 120-140 Deg

How to Use White 3mm LED - 3-3.2V, 20mA

1. Connect the LED with the correct polarity.
2. Use within the specified electrical values.

More Info

• Suitable for electronics and electrical appliances.
• Useful for home, office, and industry projects.
