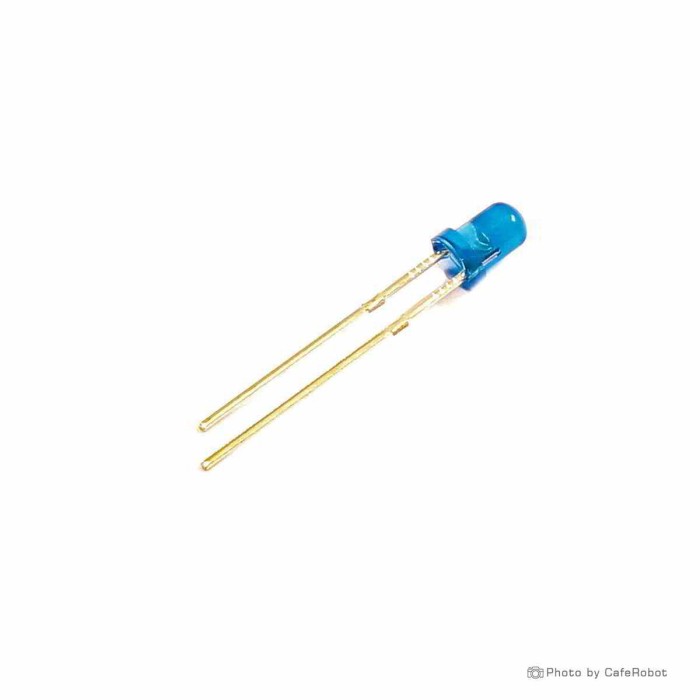

LED - Blue 3mm

The 3mm Blue LED is a small, energy-efficient light-emitting diode for electronic projects and indicator applications. It features a blue emitted color and a water clear lens. This LED uses a 3 mm diameter package in T-1 type format. It offers a peak wavelength of 470 nm, luminous intensity of 1450 mcd, and a viewing angle of 36 degrees. The operating voltage is 3 to 3.2 V DC, with an operating current of 20 mA. The component uses a through hole mounting type.

Features of 3mm Blue LED

• Blue emitted color
• 3 mm diameter package
• Water clear lens
• 470 nm peak wavelength
• 1450 mcd luminous intensity
• 36° viewing angle
• Through hole mounting

Specifications of 3mm Blue LED

• Diameter: 3 mm (T-1 type)
• Emitted Color: Blue
• Peak Wavelength: 470 nm
• Luminous Intensity: 1450 mcd
• Viewing Angle: 36 degrees
• Operating Voltage: 3 to 3.2 V DC
• Operating Current: 20 mA
• Mounting Type: Through Hole
• Lens Type: Water Clear

How to Use 3mm Blue LED

1. Place the LED in a through hole circuit position.
2. Connect it within the operating voltage and current limits.

More Info

• Suitable for status indication
• Suitable for decorative lighting
