Alumium GT2 Timing Pulley - 20 Teeth, 5mm Bore
$0.6700
In stock
SKU
3DP-01-067
Volume discounts:
- +50 4 % $0.6400
- +100 7 % $0.6200
- +300 9 % $0.6100
- +500 12 % $0.5900
- +1000 13 % $0.5800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Alumium GT2 Timing Pulley - 20 Teeth, 3mm Bore Previous

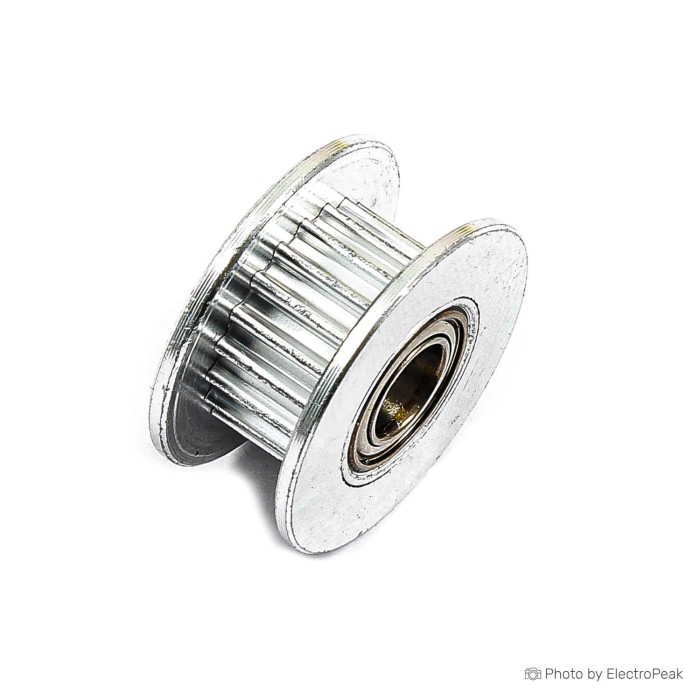

The Aluminium GT2 Timing Pulley - 20 Teeth, 5mm Bore is a timing pulley for GT2 synchronous belt and 2GT timing belt applications. It is made of aluminum and includes 20 teeth with a 5mm bore. The pulley is designed to support stepper motor shaft mounting and belt movement transfer. Its dimensions are listed below for clear selection and installation.
Features of Aluminium GT2 Timing Pulley - 20 Teeth, 5mm Bore
- 20 teeth
- 5mm bore diameter
- Aluminum material
- Suitable for 6mm width 2GT timing belt
- Designed for stepper motor shaft attachment
Specifications of Aluminium GT2 Timing Pulley - 20 Teeth, 5mm Bore
- Model: GT2-20
- 20 teeth
- Shaft diameter: 5mm
- Inner diameter: 12mm
- Outer diameter: 18mm
- Outer width: 8.5mm
- Inner width: 6.5mm
- Tooth width: 7mm
- Total height: 9mm
- Tooth outer diameter: 12mm
- Edge outer diameter: 18mm
- Material: aluminum
- Suitable for 6mm width 2GT timing belt
How to Use Aluminium GT2 Timing Pulley - 20 Teeth, 5mm Bore
- Mount the pulley on a 5mm shaft.
- Fit it with a compatible 2GT timing belt.
- Secure the assembly for motion transfer.
More Info
- Used in timing belt drive systems.
- Intended for stepper motor motion transfer.
