$0.50

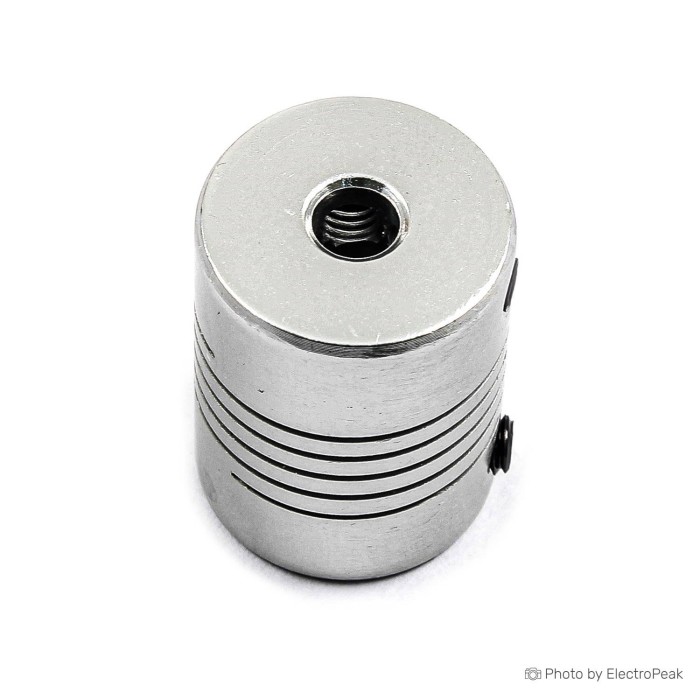

The Flexible Shaft Coupling with a 5mm to 5mm size specification is a mechanical component used to connect two shafts with different diameters while allowing for a degree of misalignment and flexibility. This coupling provides a secure and efficient way to transmit torque between shafts while accommodating slight angular or parallel misalignments.
Specificatoins of Flexible Shaft Coupling - 5x5 (for 3D Printers):
- Coupling Type: Flexible shaft coupling
- Shaft Sizes: 5mm and 5mm (inner diameters of the coupling)
- Outside Diameter: 19mm
- Material:Aluminum alloy 6063
- Length: 25mm
- Color：Silver
- Flexibility: Allows for a certain amount of angular and parallel misalignment between the connected shafts
- Torque Transmission: Transmits torque from one shaft to another without causing excessive stress or wear on the shafts or bearings
- Applications: Used in various mechanical systems, such as robotics, CNC machines, 3D printers, and more
Features of Flexible Shaft Coupling - 5x5 (for 3D Printers):
- Misalignment Compensation: The flexible coupling accommodates slight misalignments between shafts, reducing stress and wear on components.
- Smooth Torque Transmission: It enables efficient torque transfer between shafts while minimizing vibrations and backlash.
- Easy Installation: The clamping hub design allows for straightforward installation and removal without disassembling the shafts.
- Usage Tip:
- Ensure that the coupling is properly aligned and installed on both shafts. Avoid over-tightening the clamping hubs to prevent excessive stress on the coupling or shafts.
- Caution:
- Do not exceed the specified torque capacity of the coupling to prevent damage. Regularly inspect the coupling for wear or damage, especially in high-stress applications.
