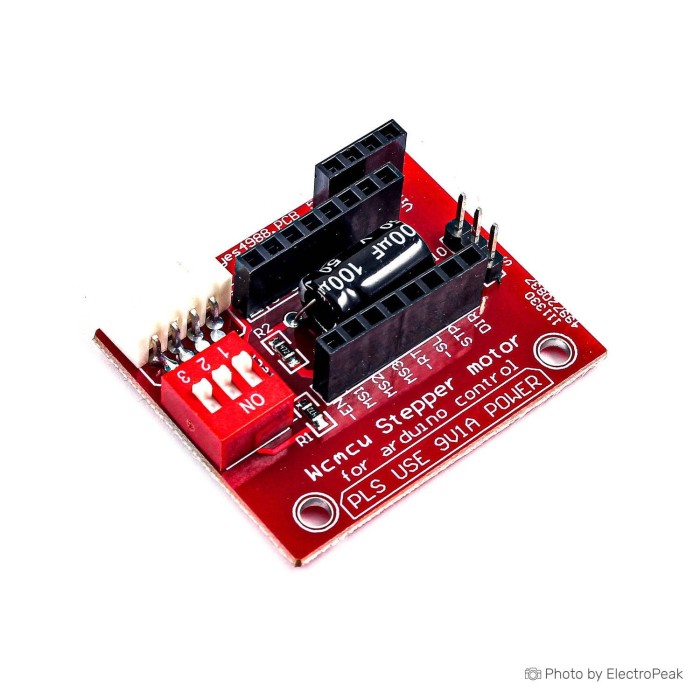

3D Printer A4988/DRV8825 Stepper Motor Expansion Board
$0.6000
In stock
SKU
3DP-01-138
Volume discounts:
- +100 5 % $0.5700
- +300 8 % $0.5500
- +500 10 % $0.5400
- +1000 12 % $0.5300
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
TMC2208 V3.0 Stepper Motor Driver Module (for 3D Printers)
Previous
Description
A4988 / DRV8825 Stepper Motor Driver Expansion Board for 3D Printer Parts is use to extend the A4988 or DRV8825 stepper motor driver module.
You can use A4988 / DRV8825, take care of the direction when inserting, or it may burn down the driver.
The jumper hits the position of ON DP to indicate 16 subdivision (4988) or 32 subdivision (8825).
White connector: for connection motor.
Female Power connector: for connects 5V and 12V-24V power.
E, S, D, respectively corresponding to the connection of the Enable/Step/Dir – drive signal output.
Features
Reasonable voltage: 5 volts DC
Input voltage: 12-24 volts
Interface: direction, enable, speed
Has a thermal extinguishing circuit
Module application: A4988, DRV8825
Ground connection protection
5, 12 and 24 volt power pins
3 keys for micro stepping settings
Short circuit protection
