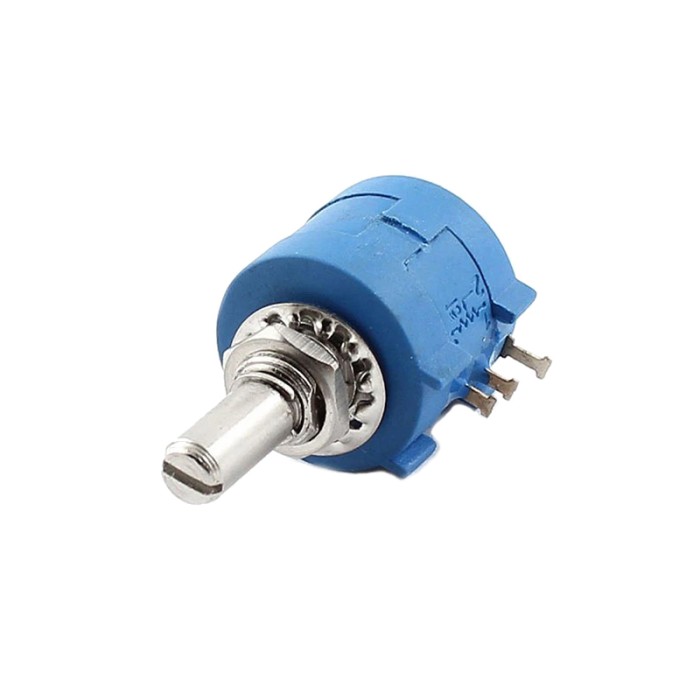

The 3590S Precise Multi-turn Potentiometer is a high-precision, stable, and durable component designed for accurate and smooth adjustment across 10 full turns. This potentiometer is ideal for use in calibration devices, instrumentation, electronic circuits, audio equipment, and industrial controls. It features a robust construction suitable for demanding environments, ensuring long lifespan and high reliability. The potentiometer offers a wide resistance range from 100Ω to 10kΩ, with a typical tolerance of ±5% and an independent linear accuracy of ±0.25%.
Specifications of 3590S Precise Multi-turn Potentiometer
- Type: Multi-turn precision potentiometer
- Resistance Range: 100Ω-10kΩ
- Turns: 10 turns for full-scale adjustment
- Tolerance: ±5% (typical)
- Independent Linear Accuracy: ±0.25%
- Power Rating: 2W at 70°C
- Temperature Coefficient: ±50ppm/°C
- Mechanical Angle: 3600° (10 turns)
- Electrical Angle: 3600° (10 turns)
- Operating Temperature: -55°C to +125°C
- Fixing Screw Mounting Hole Diameter: 9.0mm
- Shaft Diameter: 6.35mm (1/4 inch)
- Shaft Length: 20mm (varies by model)
- Rotation Life: 1,000,000 revolutions
- Load Life: 1000 hours
- Mounting Type: Panel mount with bushing
- Dimensions: Varies based on specific model
- Nominal Resistance Range: 100Ω-100kΩ
- Terminal Resistance: ≤0.2%R
- Rotating Noise: ≤3%R or 30
- Insulation Resistance: R1≥1GΩ
- Withstand Voltage: 101.3Pa 710V, 8.5kPa 470V
- Temperature Coefficient of Resistance: ±100ppm/°C
- Temperature Change: △R≤±2%R, (Uab/Uac) ≤±1%
- Collision: 390m/s², 4000 times, △R≤±1%R
- Vibration: 10-500Hz, 0.75mm or 98m/s², 6h △R≤±1%R, (Uab/Uac) ≤±2%
- Starting Torque: ≤36mN·m
- Stop Torque: ≥300mN·m
Datasheet of 3590S Precise Multi-turn Potentiometer
Datasheet of 3590 Precise Multi-turn Potentiometer
Datasheet of 3590S Precise Multi-turn Potentiometer
