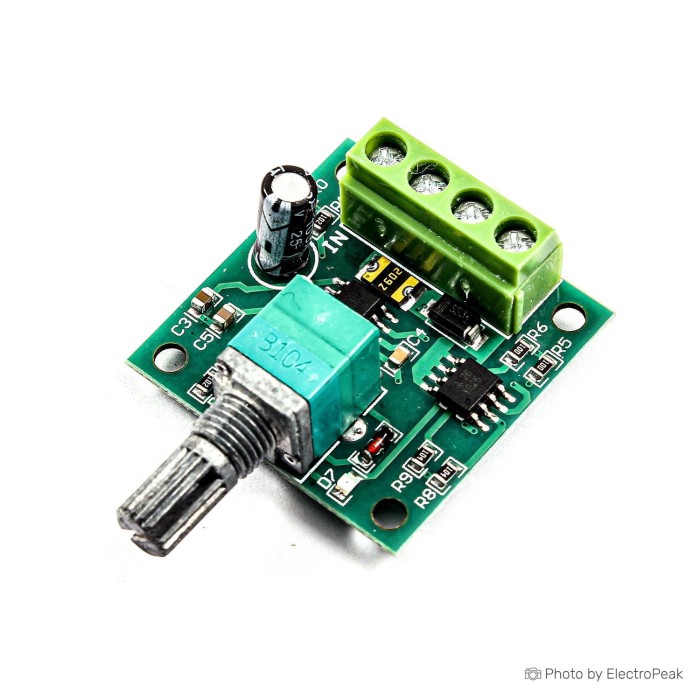

1803BK 30W DC Motor PWM Speed Controller
$0.4400
In stock
SKU
MTR-08-019
Volume discounts:
- +100 2 % $0.4300
- +500 5 % $0.4200
- +1000 7 % $0.4100
- +5000 9 % $0.4000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
12-48V PWM DC Motor Speed Controller with Case and Display Previous
The 1803BK DC Motor PWM Speed Controller provides PWM-based speed control for DC motors. It operates with a DC input voltage range of 1.8V to 15V and delivers up to 30W output power. The module supports precise speed adjustment through duty cycle control from 0% to 100%. It includes protection features for safer operation. The compact form factor and lightweight design make it suitable for space-limited installations.
Features of 1803BK DC Motor PWM Speed Controller
- PWM speed control
- DC motor speed adjustment
- 0% to 100% duty cycle
- 2A output current
- 2A fuse protection
- Overcurrent protection
- Reverse power protection
- Compact design
- Lightweight body
Specifications of 1803BK DC Motor PWM Speed Controller
- Model: 1803BK
- Input voltage: 1.8V to 15V DC
- Output power: 30W
- Continuous output current: 2A
- Duty cycle adjustment: 0% to 100%
- Size: 1.3x1.3x0.6 inch
- Weight: 14 g
- Voltage range: 1.8V-12V DC
- Current range: 2A
- Switch function: have
- Speed range: 0-100%
- Size: 32mm*32mm
How to Use 1803BK DC Motor PWM Speed Controller
- Connect the module to a DC power supply.
- Adjust the control input to set the motor speed.
- Use the switch function as needed.
More Info
- Do not connect directly to AC 220V.
- A power supply greater than 12V is not recommended.
- Continuous current greater than 0.5A is noted for caution.
| Weight (g) | 14 |
|---|
