30A PWM Relay Switch Navigation Light Remote Control for RC Airplane

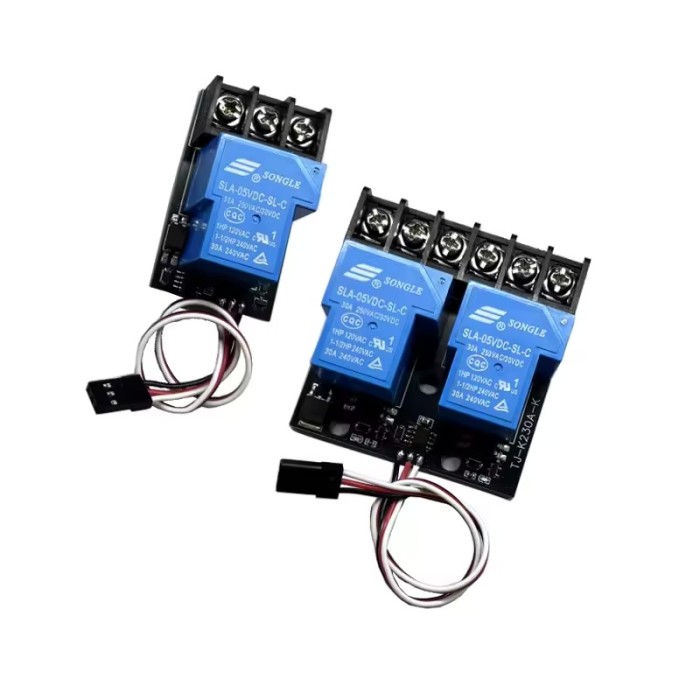

The 30A PWM Relay Switch is designed for RC airplanes and other remote-controlled applications. Available in 1CH (K130A-K) and 2CH (K230A-K) versions, it handles high-current loads up to 30A and supports both three-stage and proportional channel control. It features LED indicators, power-on protection, and wide receiver voltage compatibility.

Specifications of 30A PWM Relay Switch Navigation Light Remote Control

K130A-K (1CH version):

• Item Name: 1CH Relay Switch
• Receiver Voltage: 4–10V
• Signal Input: 1CH
• Output: 1CH Electronic Switch
• Max Load: 30A 250VAC / 30A 30VDC
• Indicator: 1CH LED
• Protection: Power-on protection included
• No calibration needed
• Compatible with multiple remote control devices
• Dimensions: 57x31x23mm

K230A-K (2CH version):

• Item Name: Relay Switch
• Receiver Voltage: 4–10V (do not exceed 12V)
• Signal Input: 1CH
• Output: 2CH Electronic Switch (only one relay active at a time)
• Max Load: 30A 250VAC / 30A 30VDC
• Control: Three-stage switch/proportional channel
• Indicator: Blue LED
• No calibration needed
• Compatible with multiple remote control devices
• Dimensions: ---

How to use of 30A PWM Relay Switch Navigation Light Remote Control

1. Connect
   • Insert the signal input cable into the three-stage switch or joystick channel of the receiver.
   • Connect the controlled device to the switch output.
2. Trigger Examples Throttle Channel:
   • Full throttle: Relay A closes
   • Half throttle: No relay active
   • Minimum throttle: Relay B closes Three-Stage Switch:
   • High position: Relay A closes
   • Center position: No relay active
   • Low position: Relay B closes

Datasheet of 30A PWM Relay Switch Navigation Light Remote Control

Datasheet: Not available
