Current Shunt Resistor - 30A
$1.7500
In stock
SKU
TLS-06-016
Volume discounts:
- +50 5 % $1.6700
- +100 7 % $1.6300
- +300 9 % $1.5900
- +500 11 % $1.5500
- +1000 13 % $1.5200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Current Shunt Resistor - 20A Previous

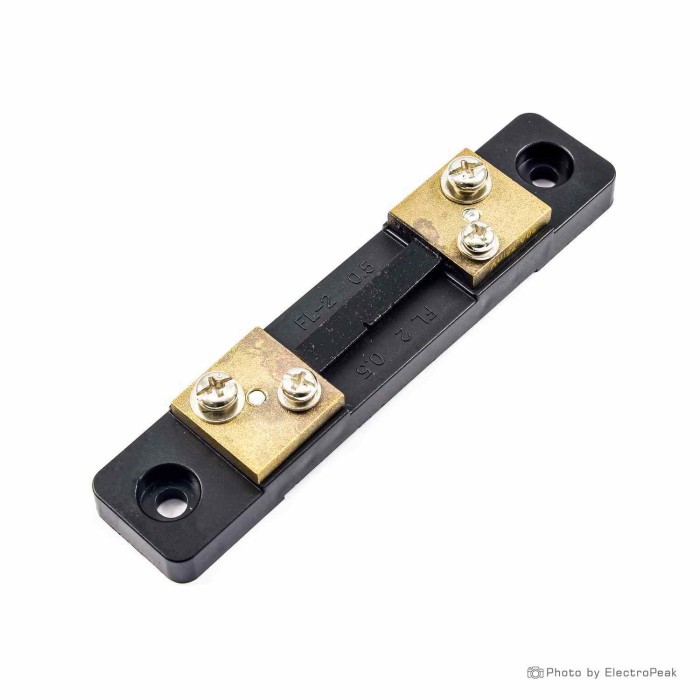

The FL-2 Current Shunt Resistor is designed for measuring high DC currents with an ammeter. It creates a 75mV voltage drop for current measurement in DC circuits. This shunt is suitable for high current ammeters and DC circuits. It combines metal and plastic construction with a compact form factor. The package includes 1 x 30A 75mV DC Shunt.
Features of FL-2 Current Shunt Resistor - 30A, 75mV
- High-current DC measurement
- 75mV voltage drop
- Accuracy class 0.5
- Metal and plastic construction
- Compact shunt design
Specifications of FL-2 Current Shunt Resistor - 30A, 75mV
- Model: FL-2
- Voltage Drop: 75mV
- Maximum Current: 30A DC
- Accuracy Class: 0.5
- Dimensions: 120x25x19 mm
- Material: Metal + durable plastic
- Net Weight: 58g
- Main Color: Silver Tone, Black
- Package Content: 1 x 30A 75mV DC Shunt
- Current: 30A
- Voltage Drop: 75mV
- Dimension: 12 x 1.5 x 2.5cm/4.7" x 0.6" x 1"(L*W*T)
How to Use FL-2 Current Shunt Resistor - 30A, 75mV
- Install the shunt in the DC current path.
- Connect an ammeter to read the voltage drop.
- Measure current according to the meter scale.
More Info
- Suitable for high current ammeters and DC circuits
- Package includes 1 x 30A 75mV DC Shunt
| Interface Type | Analog |
|---|---|
| Dimensions (mm) | 120x25x19 mm |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Accuracy | 0.5 |
| Current Range (A) | 30A DC |
| Material | Metal + Plastic |
| Model | FL-2 |
| Display Type | None |
| Parameters | Current |
| Voltage Drop | 75mV |
