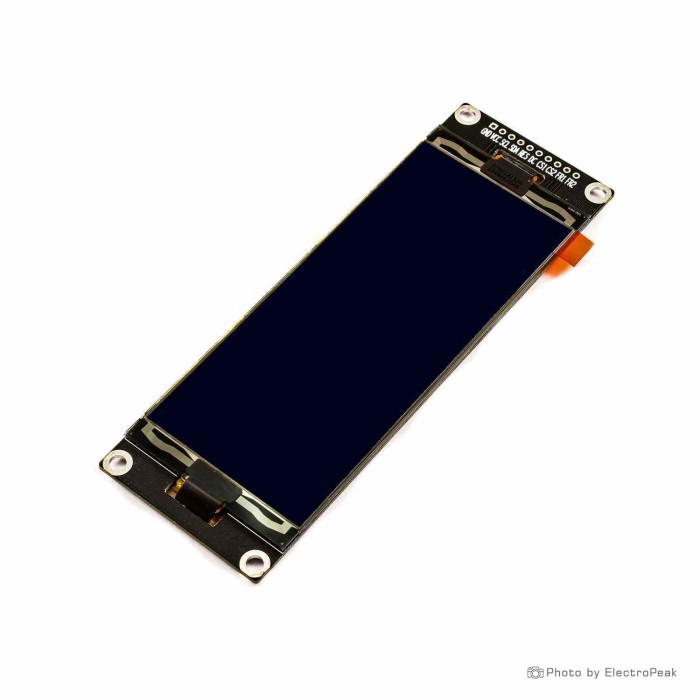

3.83inch OLED Display Module - SPI, SSD1302Z Driver (Blue)

$35.5000
In stock
SKU
LCD-01-251
Volume discounts:
  • +10 3 % $34.4100
  • +25 5 % $33.8700
  • +50 6 % $33.3300
  • +100 8 % $32.7800
  • +300 9 % $32.2400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
5.5inch OLED Display - SPI/Parallel, 30 Pin, SSD1322 Driver (Yellow) Previous 5.5inch OLED Display - SPI/Parallel, 30 Pin, SSD1322 Driver (Yellow)
More Information
Display Size3.83 inch
Display Size Range3.5 inch to 6.9 inch
Display Resolution320x240
Display DriverSSD1302Z, SSD1320Z
Display InterfaceSPI
Panle TypePM OLED
Display Color TypeMonochrome
Touchscreen TypeNone
Backlight TypeNone
Operating Temp (°C)-40 to 70
Operating Voltage (V)3.3V
Pins10
Dimensions (mm)124 x 41.84 x 3.6 mm; 37.072 x 89.9 mm
Operating Current (mA)1287 mW (All pixels on), 659 mW (50% pixels on), 273 mW (25% pixels on), 45 mW (Standby mode)
Pitch (mm)2.54 mm pitch single row pin header
Pixel Pitch0.281 x 0.281 mm
