3.2inch 128x64 Graphical LCD Display
SAVE
As low as $5.9500
In stock
Only %1 left
SKU
LCD-01-085
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MAX7219 8x32 LED Dot Matrix Display Previous

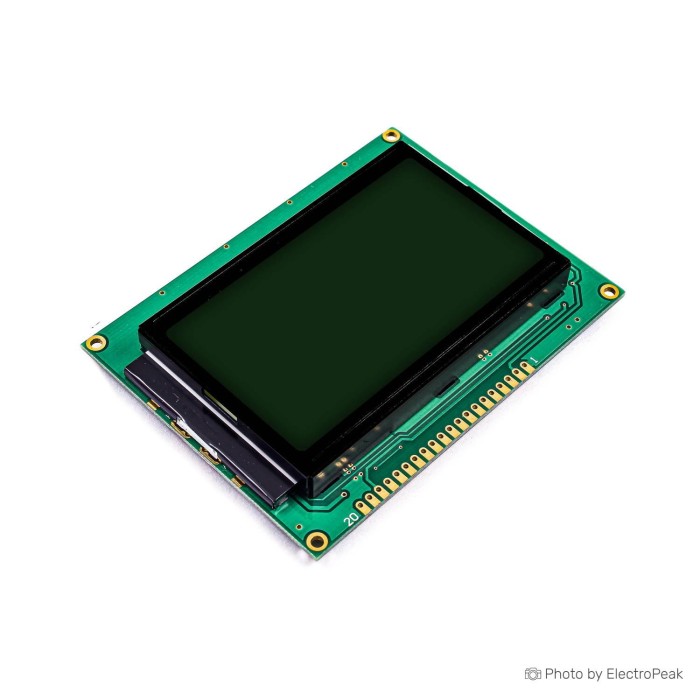

The 128x64 graphical LCD module (model 12864B) with a 3.2-inch screen remains a popular choice for electronic projects thanks to its simplicity, affordability, and reliable performance. This monochrome display features a backlight in green or blue and displays black text and graphics, making it suitable for basic image rendering and text display. With 20 pins and an AIP31107/8 controller, it's easy to interface with microcontrollers.
Specifications of 128x64 Graphical LCD 3.2 Inch - Model 12864B
- Model: 12864B
- Resolution: 128x64 pixels
- Controller: AIP31107/8
- Viewing Direction: 6:00
- Input Voltage: 5V
- Backlight Color: Blue or Green (Selectable)
- Pin Count: 20 pins
- Physical Dimensions: 93x70x12.5 mm
- Display Area: 72x39 mm
- Pixel Size: 0.52x0.52 mm
- Operating Temperature: -20℃ to +70℃
| Model | 12864B |
|---|---|
| Display Size | 3.2 |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 128x64 |
| Display Driver | AIP31107/8 |
| Display Interface | Parallel |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | Blue LED, Green LED |
| Viewing Angle (°) | 6:00 |
| Operating Temp (°C) | -20 to +70 |
| Operating Voltage (V) | 5V |
| Pins | 20 |
| Dimensions (mm) | 72x39mm |
