3.2inch TFT LCD - SPI, 18 Pin, ILI9341 Driver
$6.9500
In stock
SKU
LCD-01-177
Volume discounts:
- +25 4 % $6.6800
- +50 6 % $6.5500
- +100 8 % $6.4100
- +300 10 % $6.2800
- +500 12 % $6.1400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
3.2inch TFT LCD - Parallel, 37 Pin, ILI9341 Driver, Capacitive Touch Screen Previous

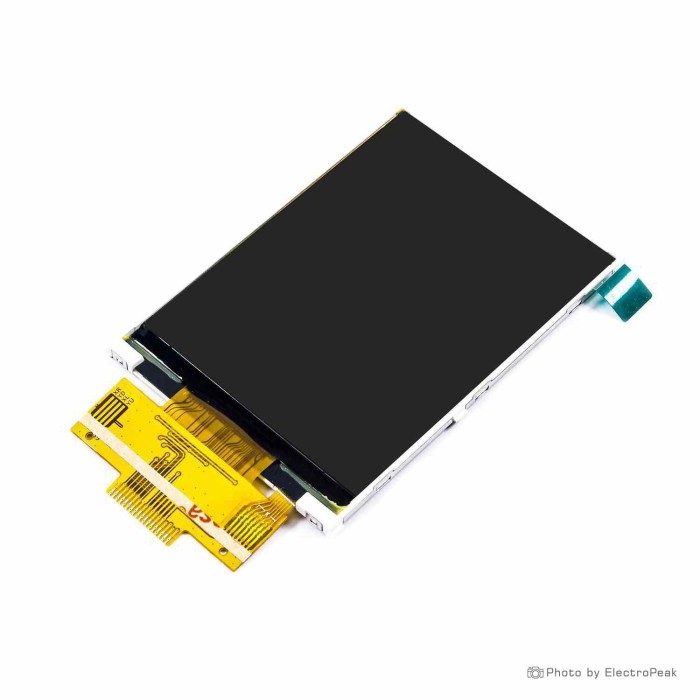

This 3.2-inch full-color TFT LCD is ideal for projects requiring vibrant graphics and clear display. Powered by the ILI9341 driver chip, it supports 4-wire SPI interface and has a resolution of 240x320 pixels. The display includes an 18-pin flat cable with 0.8mm pitch and operates at a voltage range of 2.8V to 3.3V. It does not include touch functionality and features a 6-LED backlight for bright visuals.
Specifications of 3.2 inch SPI Plug-in TFT LCD with ILI9341 Driver
- Type: TFT & IPS LCD
- Size: 3.2 inches
- Resolution: 240(H) x 320(V) RGB
- Working Voltage: 2.8 ~ 3.3 V
- Working Current: 90 mA
- Power Consumption: 0.32 W
- Control Chip: ILI9341
- Display Color: Full-Color
- Physical Size: 54.00 x 77.40 x 2.40 mm
- Screen Size: 43.20 x 57.60 mm
- Interface Type: 4-wire SPI
- Number of Pins: 18 pin
- Pin Distance: 0.8 mm
- Backlight Type: 6 LED
- Working Temperature: -20°C to +70°C
| Platform | Arduino, ESP, Raspberry Pi Pico, STM |
|---|---|
| Display Size | 3.2 |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 320x240 |
| Display Driver | ILI9341 |
| Display Interface | SPI |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Touchscreen Type | None |
| Backlight Type | White LED |
| Operating Temp (°C) | -20 to 70 |
| Operating Voltage (V) | 3.3V |
| Pins | 18 |
| Dimensions (mm) | 48.6 x 64.8 mm |
| Pitch (mm) | 0.8 mm |
