3.12inch OLED Display - SPI/Parallel, 30 Pin, SSD1322 Driver (White)
$13.9500
In stock
SKU
LCD-01-249
Volume discounts:
- +25 4 % $13.4100
- +50 6 % $13.1400
- +100 8 % $12.8800
- +300 10 % $12.6100
- +500 12 % $12.3400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
3.12inch OLED Display Module - SPI/Parallel, SSD1322 Driver (Blue) Previous

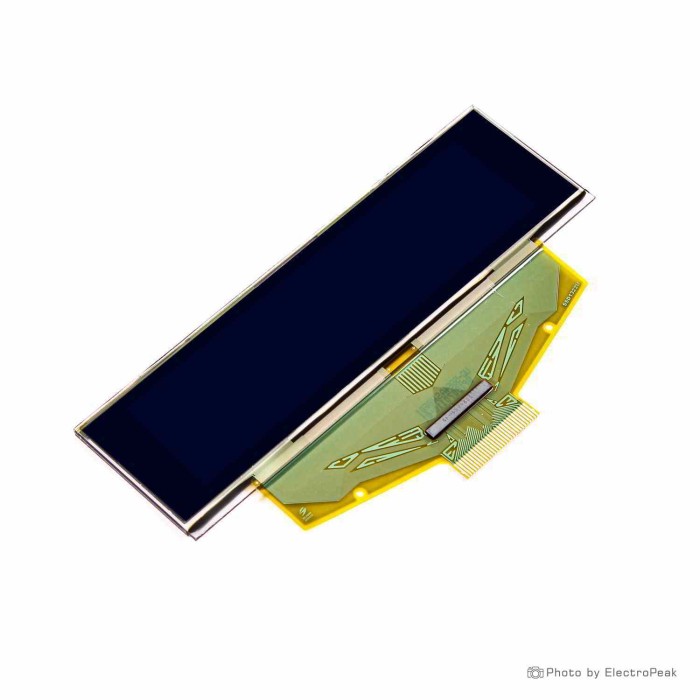

The 3.12-inch white monochrome OLED display with SSD1322 driver is a high-performance module ideal for industrial, medical, and commercial applications. It supports 16 grayscale levels and offers crisp visual output with a resolution of 256x64 pixels. Its energy-efficient design and wide operating temperature range make it suitable for demanding environments.
The module supports both SPI and 8-bit parallel (68XX/80XX) interfaces, using a 30-pin flat cable with 0.5 mm pitch. With a physical size of 88.00 x 27.80 mm and an active display area of 76.78 x 19.18 mm, this display provides a good balance of size and visibility.
Specifications of 3.12 inch SPI/Parallel Plug in OLED Display with SSD1322 Driver
- Type: PM OLED Display
- Size: 3.12 inches
- Resolution: 256 x 64 pixels
- Driver Chip: SSD1322
- Display Color: Single Color (white)
- Grayscale: Supports 16 grayscale levels
- Interface Type: 3/4-wire SPI, 8-bit 68XX/80XX Parallel
- Number of Pins: 30
- Pin Distance: 0.5 mm
- Working Voltage: 3.3 V
- Physical Size: 88.00 x 27.80 x 2.00 mm
- Display Area: 76.78 x 19.18 mm
- Pixel Pitch: 0.3 x 0.3 mm
- Working Temperature: -40 to +85 °C
| Display Size | 3.12 inch |
|---|---|
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 256x64 |
| Display Driver | SSD1322 |
| Display Interface | Parallel, SPI |
| Panle Type | PM OLED |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Temp (°C) | -40 to 85 |
| Operating Voltage (V) | 3.3V |
| Pins | 30 |
| Dimensions (mm) | 88.00x27.80x2.00 mm |
| Pixel Pitch | 0.3x0.3 mm |
