2x40 Pin Male Header - 2mm Pitch
$0.0580
In stock
SKU
CAB-01-113
Volume discounts:
- +100 4 % $0.0555
- +500 7 % $0.0542
- +1000 9 % $0.0530
- +5000 11 % $0.0517
- +10000 13 % $0.0504
2x40 Pin Male Header - 2mm Pitch is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
1x40 Pin Male Header - 1.27mm Pitch
Previous

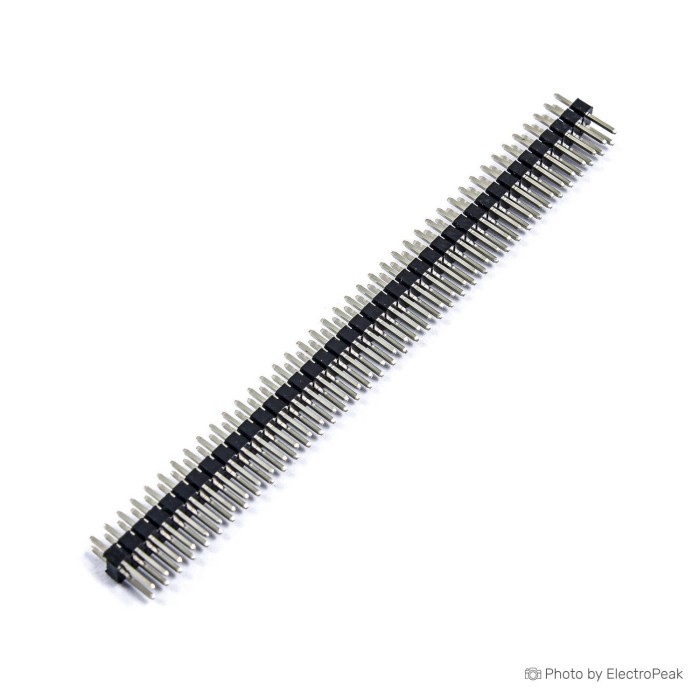

The 2x40 Pin Male Header with a 2mm pitch is a fundamental electronic component commonly used for creating connections and interfaces in electronics projects, PCB designs, and prototyping. This male header features a double row of 80 pins spaced at a standard 2mm interval, making it compatible with various boards, modules, and components.
Specificatoins of 2x40 Pin Male Header - 2mm Pitch:
- Connector Type: Male header with 2 row of 40 pins each (total of 80 pins)
- Pin Pitch: 2mm
- Pin Configuration: 2x40 configuration, meaning a two row of 40 pins
- Mounting angle: Straight needle
- Color:Black
Features of 2x40 Pin Male Header - 2mm Pitch:
- High-Density Connectivity: The 2x40 pin male header offers a high number of pins in a compact form factor, suitable for densely packed designs.
- Versatile Interface: Use it to connect a wide range of components, modules, or devices, enabling complex circuitry and interconnections.
- Standard Pitch: The 2mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
- Usage Tip:
- Solder the 2x40 pin male header onto a PCB to provide a large number of connection points for interfacing with various components, modules, or devices. Ensure proper alignment and spacing during soldering.
- Caution:
- Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.
How to Use 2x40 Pin Male Header - 2mm Pitch:
Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
