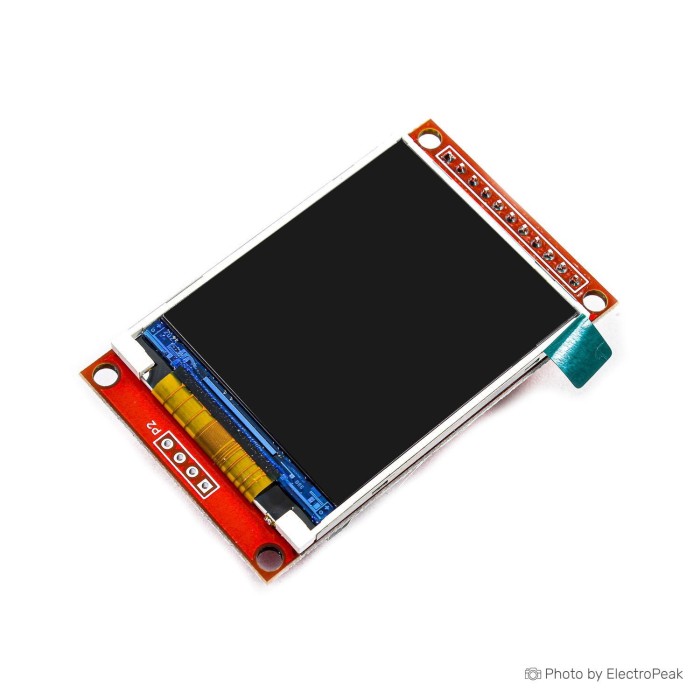

2.0 inch TFT LCD Display Module - SPI Interface

[LCD-01-139]
Volume discounts:
  • +25 4 % $6.49
  • +50 6 % $6.35
  • +100 8 % $6.22
  • +300 10 % $6.09
  • +500 12 % $5.96
Shop with confidence Learn More
Availability: 279 items
SKU
LCD-01-139
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$6.75

Description
This is a 2.0 inch TFT LCD expansion board with 8-bit parallel interface. This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. It leads out the pins of the TFT and breakout pins pitch is 2.54mm, so the secondary development is easy.
It leads out PAD pins so that you can solder pin headers to plug it onto the breadboard or use dupont cable to connect it to Arduino board.
It also lead out SMD pins (half-hole process) so that you can solder it onto the experiment PCB board or your own designed board. That is great to design wonderful projects.
With RTC module, you can design your clock.
With NFC reader module, you can create access control systems with the photos show.
Can use it directly to display characters, graphics and BMP format images with the help of Micro SD card adapter module.
Compatibility: Because the logic level is 3.3V, it is compatible with 3.3V for Arduino board, you can connect to it OPEN-SMART UNO Black version with 5V/3.3V power switch. You need to add a level conversion circuit if you use a 5V for Arduino Board (for Arduino UNO R3 Mega2560 Leonardo). You can also connect it to other 3.3V MCU directly.
LED pin can connect to external backlight control circuit to control the brightness of backlight. You can connect it to GND to turn on the backlight all day.

Features
Resolution: 176 x 220, 16-bit (262,000) color
Display size: 2.0 inch
Operating voltage: 3.3V
Logic level: 3.3V
Operating current: the maximum is 50mA
Bus interface: 8080-parallel interface (8 bit)
