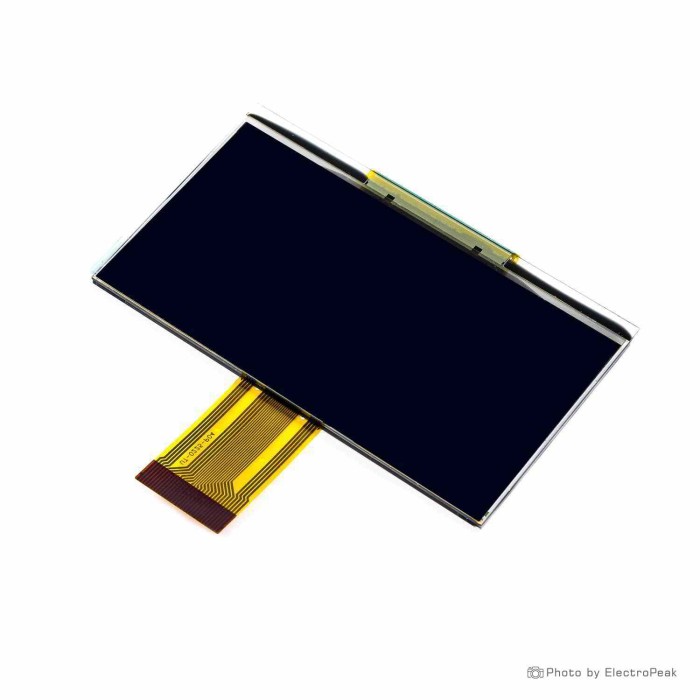

2.7inch OLED Display - SPI, 30 Pin, SSD1325 Driver
SAVE
As low as $17.9500
In stock
Only %1 left
SKU
LCD-01-241
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2.7inch OLED Display - SPI/Parallel, 30 Pin, SSD1325 Driver (Green) Previous
The 2.7 inch OLED display with SSD1325 driver offers a high-resolution and compact solution for various embedded and portable applications. With a 128x64 resolution and support for 16 grayscale levels, it delivers sharp and detailed visuals. The OLED technology ensures deep blacks, high contrast, and low power consumption.
Featuring both 8-bit Parallel and 4-wire SPI interfaces, it provides flexibility in integration with microcontroller systems. The 30-pin FPC with a 0.5 mm pitch allows for secure and easy connections. Its slim profile and wide temperature tolerance make it ideal for industrial and portable display systems.
Specifications of 2.7 inch SPI/Parallel White OLED Display with SSD1325 Driver
- Type: OLED Display
- Size: 2.7 inches
- Resolution: 128 x 64
- Working Voltage: 3.3 V
- Driver Chip: SSD1325
- Display Color: Single Color (White/Green)
- Grayscale Type: Supports 16 grayscale adjustments
- Physical Size: 73.00 x 41.86 x 2.00 mm
- Display Area: 61.41 x 30.69 mm
- Pixel Pitch: 0.48 x 0.48 mm
- Interface Type: 8-bit 68XX/80XX Parallel, 4-wire SPI
- Number of Pins: 30
- Pin Distance: 0.5 mm
- Working Temperature: -40 to +85 °C
| Display Size | 2.7 inch |
|---|---|
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 128x64 |
| Display Driver | SSD1325 |
| Display Interface | Parallel, SPI |
| Panle Type | PM OLED |
| Display Color Type | Grayscale |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Temp (°C) | -40 to 85 |
| Operating Voltage (V) | 3.3V |
| Pins | 30 |
| Dimensions (mm) | 73.00 x 41.86 x 2.00 mm; 61.41 x 30.69 mm |
| Pitch (mm) | 0.5 mm |
| Pixel Pitch | 0.48 x 0.48 mm |
