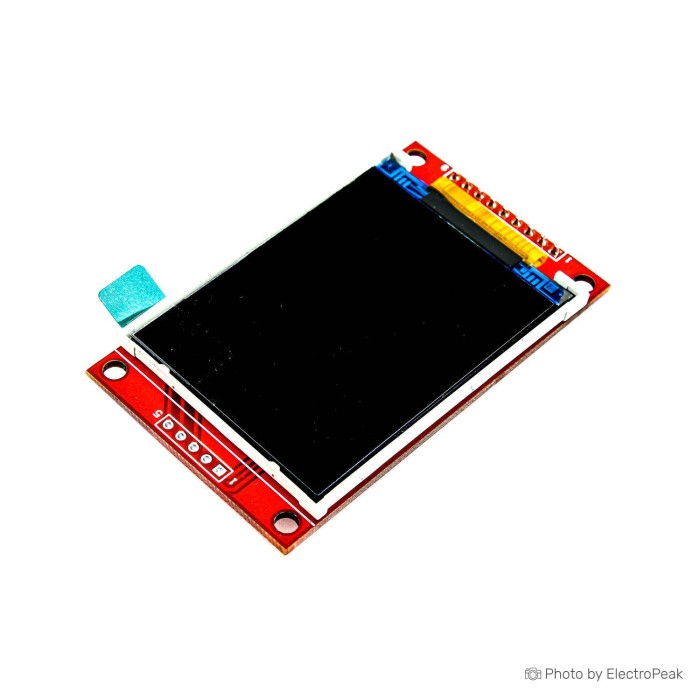

2.2 inch TFT LCD Display Module - SPI Interface
$7.9500
In stock
SKU
LCD-01-137
Volume discounts:
- +25 4 % $7.6200
- +50 6 % $7.4500
- +100 8 % $7.2900
- +300 10 % $7.1200
- +500 13 % $6.9500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2.8 inch Touch TFT LCD Display Module - SPI Interface Previous
The 2.2 inch TFT LCD Display Module is a full-color SPI display module for electronics and robotics projects. It features a 2.2-inch display with 240x320 pixel resolution and a white backlight. The module uses a four-wire SPI user interface and a narrow PCB layout. It also supports single-chip IO connections and includes onboard level conversion. An SD card expansion circuit is integrated for additional functionality. The display IC is ILI9341.
Features of 2.2 Inch TFT LCD Display Module - SPI Interface, 240x320
- Full-color TFT display
- 2.2-inch display size
- 240x320 pixel resolution
- SPI interface
- Four-wire SPI user interface
- White backlight
- Support for single-chip IO connections
- Onboard level conversion
- Integrated SD card expansion circuit
- ILI9341 driver IC
Specifications of 2.2 Inch TFT LCD Display Module - SPI Interface, 240x320
- Display size: 2.2 inch
- Pixel resolution: 240x320
- Display type: Full color
- Interface: SPI
- User interface: Four-wire SPI
- Supply voltage: 3.3 to 5 V
- Digital input pin voltage: 3.3 V
- Driver IC: ILI9341
- PCB size: 62×38 mm
- Backlight: White
- Support: All single-chip IO connections
- Support: Analogue SPI
- Support: Hardware SPI
How to Use 2.2 Inch TFT LCD Display Module - SPI Interface, 240x320
- Connect the module to the host system using the SPI interface.
- Provide power within the 3.3 to 5 V input range.
- Use 3.3 V logic for the digital input pins.
- Use the onboard SD card circuit if storage expansion is needed.
More Info
- The module includes a narrow PCB design.
- The display is a TFT LCD module with a white backlight.
- The module is suitable for single-chip direct plug-in use.
| Display Size | 2.2 inch |
|---|---|
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 240x320 |
| Display Driver | ILI9341 |
| Display Interface | SPI |
| Panle Type | TFT |
| Display Color Type | Full Color |
| Backlight Type | White LED |
| Operating Voltage (V) | 3.3V to 5V |
