2.08inch OLED Display - SPI/IIC/Parallel, 24 Pin, SSD1307 Driver (White)
$8.9500
In stock
SKU
LCD-01-232
Volume discounts:
- +25 4 % $8.5800
- +50 6 % $8.3900
- +100 8 % $8.2000
- +300 10 % $8.0200
- +500 13 % $7.8300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2.8inch OLED Display - SPI/Parallel, 30 Pin, SSD1322 Driver (White) Previous

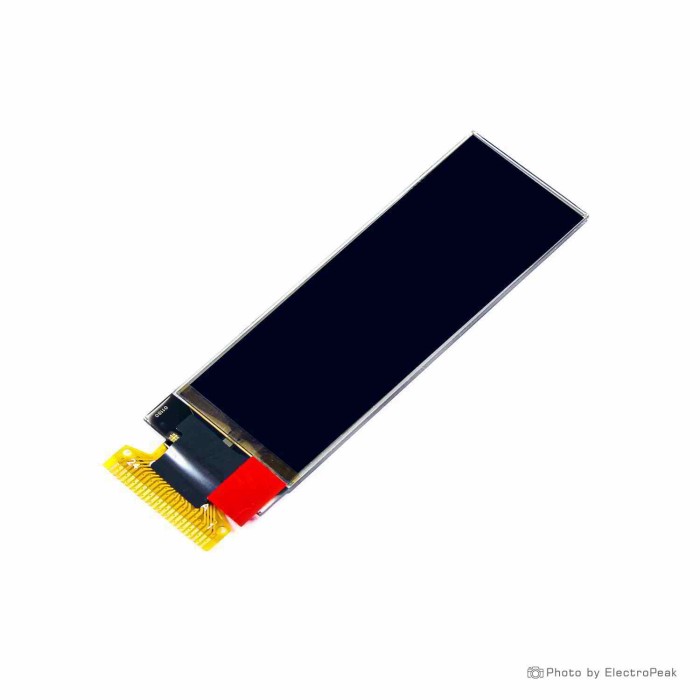

The 2.08 inch white OLED display with SSD1307 driver is a versatile and energy-efficient module designed for wearable electronics, smart devices, DIY projects, and portable systems. It offers high brightness, sharp text and graphics, and wide viewing angles thanks to OLED technology.
This display supports 8-bit parallel (6800/8080), 3/4-wire SPI, and I2C interfaces, ensuring easy integration with microcontrollers and embedded systems. It uses a 24-pin flat cable with 0.7 mm pin pitch for simple and secure connection.
Specifications of 2.08 inch SPI/IIC/Parallel White OLED Display with SSD1307 Driver
- Type: OLED Display
- Size: 2.08 inches
- Resolution: 128 x 32 pixels
- Display Color: Single Color (White)
- Driver Chip: SSD1307
- Interface Type: 8-bit 6800/8080 Parallel, 3/4-wire SPI, I2C
- Number of Pins: 24
- Pin Distance: 0.7 mm
- Working Voltage: 3.3 V
- Physical Size: 62.5 x 20.6 x 1.4 mm
- Display Area: 51.18 x 12.78 mm
- Pixel Pitch: 0.40 x 0.40 mm
- Working Temperature: -40 to +70 °C
| Display Size | 2.08 |
|---|---|
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 128x32 |
| Display Driver | SSD1307 |
| Display Interface | Parallel, SPI, I2C |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Temp (°C) | -40 to 70 |
| Operating Voltage (V) | 3.3V |
| Pins | 24 |
| Dimensions (mm) | 62.5 X 20.6 X 1.4 (mm); 51.18 X 12.78 (mm) |
| Pitch (mm) | 0.7 (mm) |
| Pixel Pitch | 0.40 X 0.40 (mm) |
