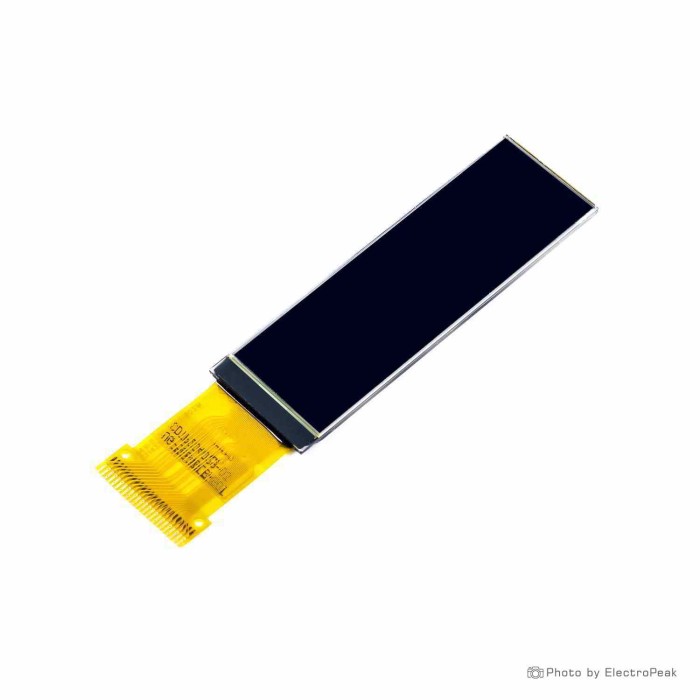

2.08inch OLED Display - SPI/IIC/Parallel, 24 Pin, SH1122 Driver (Blue)
$8.9500
In stock
SKU
LCD-01-233
Volume discounts:
- +25 4 % $8.6100
- +50 6 % $8.4500
- +100 7 % $8.2800
- +300 9 % $8.1100
- +500 11 % $7.9400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2.23inch OLED Display - SPI, 24 Pin, SSD1305 Driver (Blue) Previous
This 2.08-inch blue OLED display is an ideal choice for embedded systems and industrial applications requiring a crisp, high-resolution visual output. It features the SH1122 driver chip and supports multiple communication protocols including SPI, I2C, and 8-bit parallel interfaces. Its slim design, flat flexible cable with 24 pins, and wide temperature range make it highly versatile and easy to integrate into a variety of projects.
Specifications of 2.08-inch Blue OLED Display with SH1122 Driver
- Display Type: Monochrome OLED
- Display Color: Blue
- Size: 2.08 inches
- Resolution: 256 × 64 pixels
- Working Voltage: 3.3V
- Driver IC: SH1122
- Interface Type: 8-bit 68XX/80XX Parallel, 3/4-wire SPI, I2C
- Number of Pins: 24-pin flat cable
- Pin Pitch: 0.7 mm
- Physical Dimensions: 60.50 × 19.0 × 1.6 mm
- Display Area: 51.18 × 12.78 mm
- Pixel Pitch: 0.20 × 0.20 mm
- Operating Temperature: -40°C to +70°C
| Display Size | 2.08 inch |
|---|---|
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 256 x 64 pixels |
| Display Driver | SH1122 |
| Display Interface | Parallel, SPI, I2C |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Temp (°C) | -40 to +70 °C |
| Operating Voltage (V) | 3.3V |
| Pins | 24 |
| Dimensions (mm) | 60.50 x 19.0 x 1.6 mm; 51.18 x 12.78 mm |
| Pitch (mm) | 0.7 mm |
| Pixel Pitch | 0.20 x 0.20 mm |
