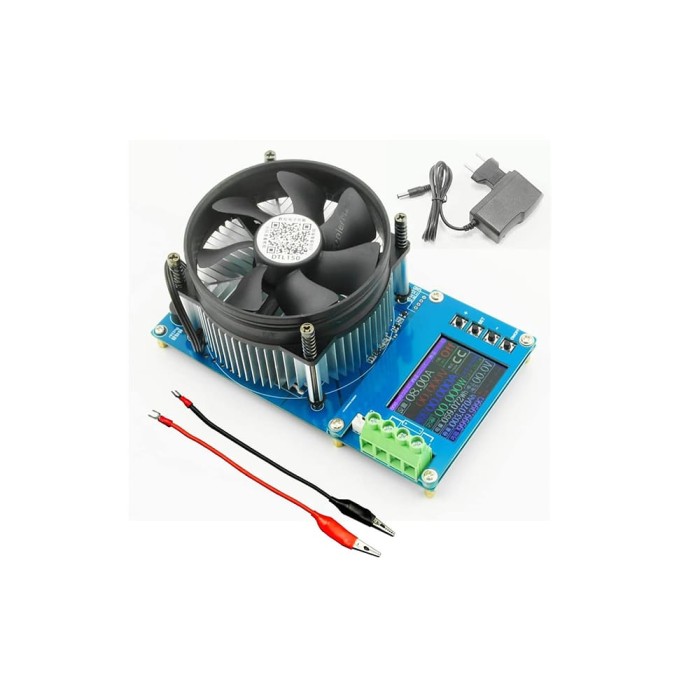

150W 20A LCD Digital Electronic Load Battery Tester

The 150W 20A LCD Digital Electronic Load Battery Tester is a high-performance and versatile battery tester that offers accurate and efficient testing of various batteries. With its advanced technology and compatibility with various battery types, this tester is suitable for a wide range of applications. It also has a compact and user-friendly design, making it easy to use and store.

Equipped with a high-precision voltage and current measurement system, the 150W 20A LCD Digital Electronic Load Battery Tester ensures accurate and reliable testing results. It also has a large LCD display, providing a clear and easy-to-read interface for monitoring the testing process. With its affordable price and practical functionality, this battery tester is a top choice for professionals and enthusiasts in need of a reliable and versatile testing solution. Upgrade to the 150W 20A LCD Digital Electronic Load Battery Tester and take the guesswork out of battery testing.

Specification of 150W 20A LCD Digital Electronic Load Battery Tester:

• Material: plastic
• Load type: DC- numerical- control electronic load
• Operating voltage: DC-12V with 12V1A power adapter
• Load voltage: DC-0-150V
• Load current: DC-0-20A
• Load power: 0-150W (maximum bearing- capacity over 120V: 60W)
• Upper limit of electricity metering: 999.999Wh
• Capacity upper limit: 999.999Ah
• Cumulative timing range: DDD: HH: MM: SS-
• Operating mode: Four modes: CC-constant current mode, CV constant voltage mode, CP- constant power- mode, CR- constant resistance mode
• Overvoltage protection: supports a maximum of 150V overvoltage for protection
• Overcurrent protection: supports a maximum of 20A overcurrent for protection
• Overpower- protection: supports a maximum of 150W overpower- for protection
• Limited voltage discharge: also called low voltage- for protection, support, default- not limited voltage discharge, according to your requirements
• Timed- discharge: Supports a maximum of 99 hours: 59 minutes timed- discharge
• Heat sink: alloy integrated silent (20±3dBA) heat sink, internal temperature more- than 40„ automatic operation
