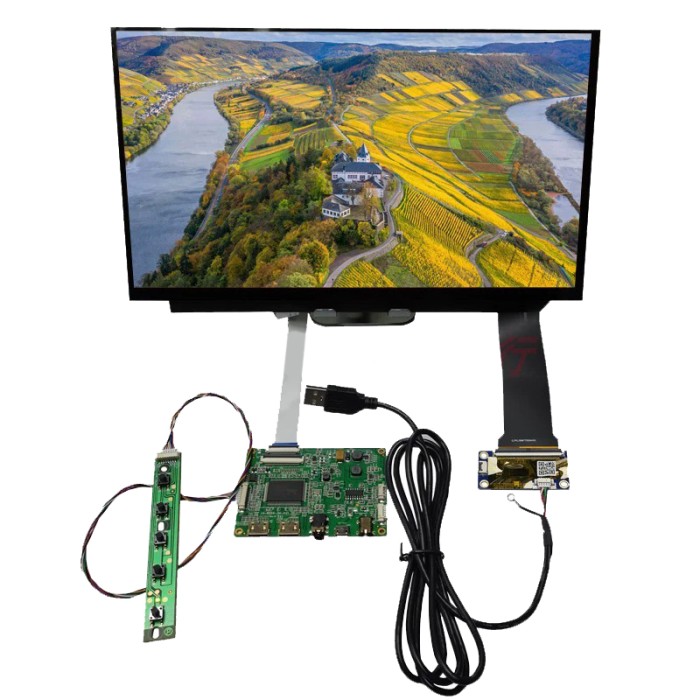

13.3 inch Full HD IPS Touch Display Module with Driver

The 13.3-inch Full HD IPS Touch Display Module is a versatile and high-performance screen solution for interactive applications. It features a 10-point capacitive touch interface and is compatible with multiple platforms, including Linux, Windows, and Android. With a resolution of 1920x1080, it offers stunning image clarity and a wide viewing angle. The module includes a driver board for easy integration and power flexibility.

Specifications of 13.3-inch Full HD IPS Touch Display Module

LCD Panel Parameters

• Size: 13.3-inch a-Si TFT-LCD module

• Resolution: 1920 (RGB) × 1080

• Display Area: 293.76mm × 165.24mm

• Dimensions: 299.96mm × 186.92mm × 2.2mm

• Surface Treatment: Mirror finish with 3H hard coating

• Brightness: 300 cd/m² (Typ.)

• Contrast Ratio: 800:1 (Typ.)

• Viewing Angles: 85°/85°/85°/85° (CR≥10)

• Display Mode: Always black, transmissive

• Interface: 30-pin eDP (2 lanes)

• Power Supply: 3.3V (Typ.)

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -20°C to 60°C

Touch Panel Parameters

• Type: 10-point capacitive touch, USB interface

• Dimensions: 302.77mm × 177.45mm

• Touch Area: 294.4mm × 165.6mm

• Cable Length: 88.04mm

• Compatibility: Plug-and-play for Linux, Windows 7/8/10, and Android (Kernel 3.1 or higher)

Display Driver Board Parameters

• Chipset: RTD2550

• Resolution: 1920x1080

• Dimensions: 82mm × 60mm × 1.2mm

• Input: HDMI (TMDS digital signals)

• Output:

  • Panel Interface: 30-pin FFC connector (0.5mm pitch)

  • Headphone Jack: Horizontal socket

• Power Input: 5V USB or 12V DC (dual or single power input)

• Screen Voltage: 3.3V

• Standby Power Consumption: <0.3W

• OSD Menu Options: Brightness, contrast, auto-correction, phase, clock, position adjustments, and reset

• OSD Languages: English, Chinese, etc.

• Control Buttons: POWER, ENTER, MENU, UP, DOWN

Datasheet of 13.3-inch Full HD IPS Touch Display Module

Datasheet: Not available
