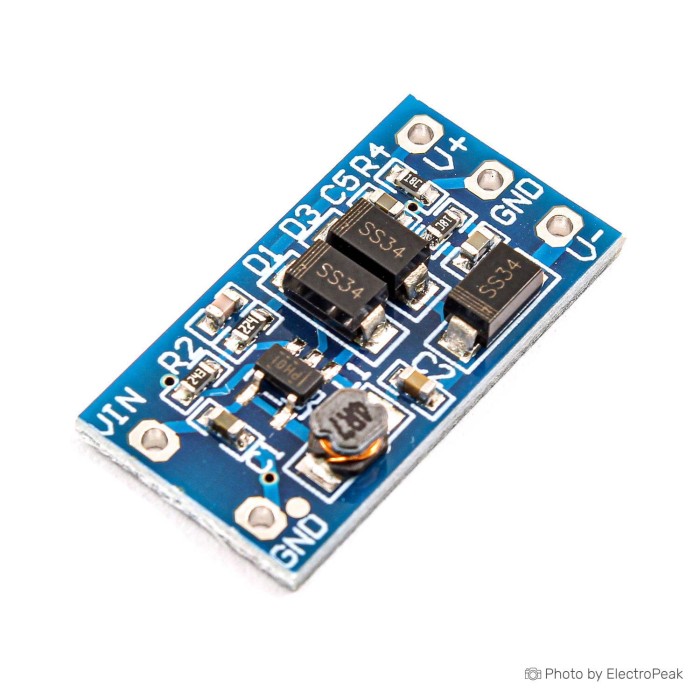

DC/DC Step-Up Regulator Module - 50mA ± 12V 50mA Output

[BAT-02-082]
Rating:
100 % of 100
Volume discounts:
  • +100 6 % $0.61
  • +300 8 % $0.60
  • +500 11 % $0.58
  • +1000 12 % $0.57
Shop with confidence Learn More
Availability: 2818 items
SKU
BAT-02-082
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.65

Description
DC-DC positive and negative 12V output voltage converter module has good performance for converting input voltages from 2.8V to 5.5V DC. You can use 3V~5.5V batteries (lithium batteries, nickel hydrogen batteries and 18650 battery series) with this module to obtain the +/- 12V output voltage. This moduel is very small sized and easy to install.

Features
Input voltage range: 2.8V ~ 5.5V
Output voltage: ± 12V (V +  is + 12V, V-  is -12V)
Output Current: + 12V stable output 50ma current capability, -12V Stable output 30ma current capability
Size: 24mm × 12mm

Application:
A2D, D2A And amplifier applications.

NOTE:
The -12V supply is lower 0.4-0.6V than the + 12V supply because of the partial voltage of the diode.
Please do not connect high-power loads to this module because of the small output current.
