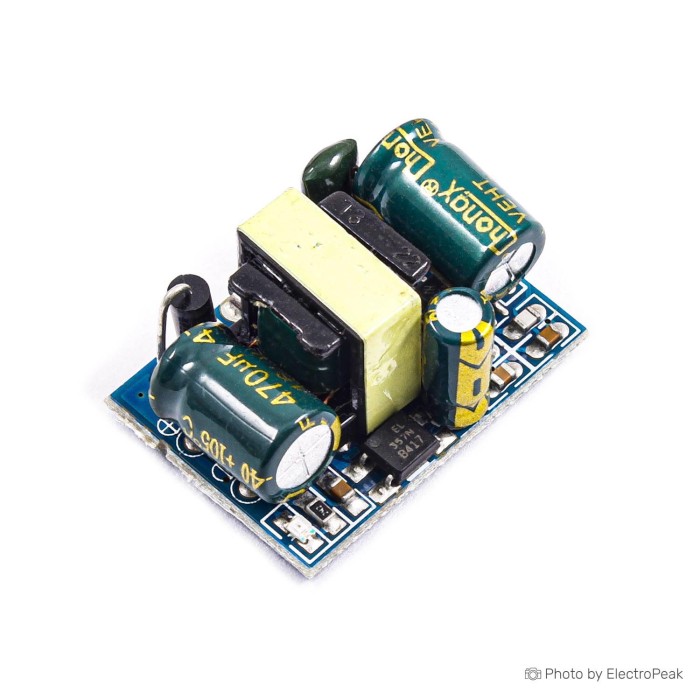

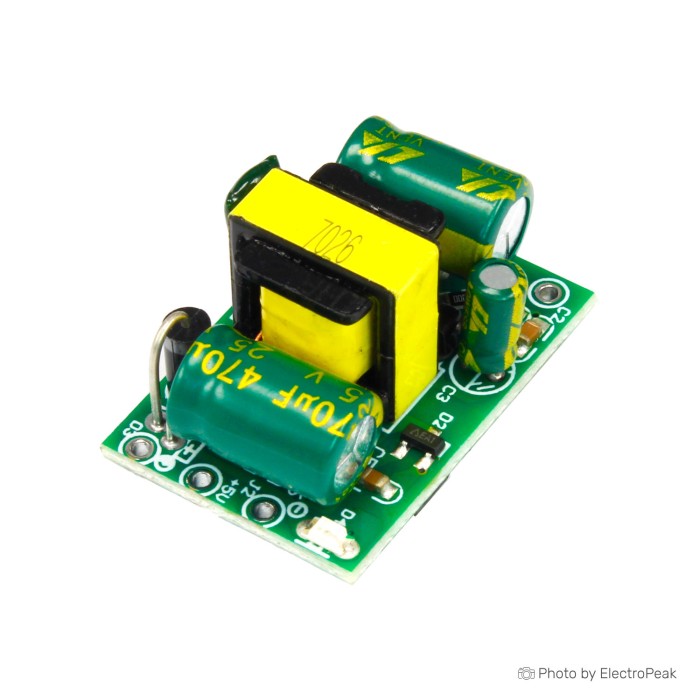

Switching Power Supply Module - 12V, 450mA
$1.0100
In stock
SKU
BAT-02-066
Volume discounts:
- +50 4 % $0.9700
- +100 7 % $0.9400
- +300 9 % $0.9200
- +500 11 % $0.9000
- +1000 13 % $0.8800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The Switching Power Supply Module is an isolated industrial grade power supply module with DC12V output. It is designed for stable power conversion with a wide input range and compact form factor. This module provides a regulated 12V output for electronics and automation projects. It includes multiple protection and isolation features for dependable operation. The module is suitable for applications that require a compact AC-to-DC switching supply.
Features of Switching Power Supply Module - 12V, 450mA
- Temperature protection
- Overcurrent protection
- Short circuit protection
- High and low voltage isolation
- Wide AC input range
- Precision DC12V output
- Small volume
- High reliability
Specifications of Switching Power Supply Module - 12V, 450mA
- Input voltage: AC 85 ~ 265 V 50/60 HZ or DC100V-370V
- Output voltage: DC12V (+ 0.1 V)
- Output current: 450mA
- Power: 5 W
- Input voltage: (85)-(265)V ac, typical 110/220
- Input current: 0.0273 (AC110V)
- Input current: 0.014 (AC220V)
- Input surge current: 20A
- Output voltage: +12V
- Maximum current: 500mA
- Maximum current: 600mA
- Output voltage: 11.80 ~ 12.1V
- Ripple: 150mV
- Output power: 0-6W
- Output rise time: MAX100MS
- Switch over shoot: MAX10
- Dimensions: 2cm*3cm
How to Use Switching Power Supply Module - 12V, 450mA
- Connect the input supply within the specified input voltage range.
- Use the DC12V output for the intended load.
- Verify the output current and power requirements before operation.
More Info
- Isolated industrial grade power supply module
- Compact module form factor
