128x64 Graphical LCD Display 12864
$4.5000
In stock
SKU
LCD-01-311
Volume discounts:
- +25 4 % $4.3200
- +100 6 % $4.2300
- +300 8 % $4.1300
- +500 10 % $4.0400
- +1000 12 % $3.9500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 5.65 Inch 7 Color e-Paper Screen for Raspberry Pi Pico Previous

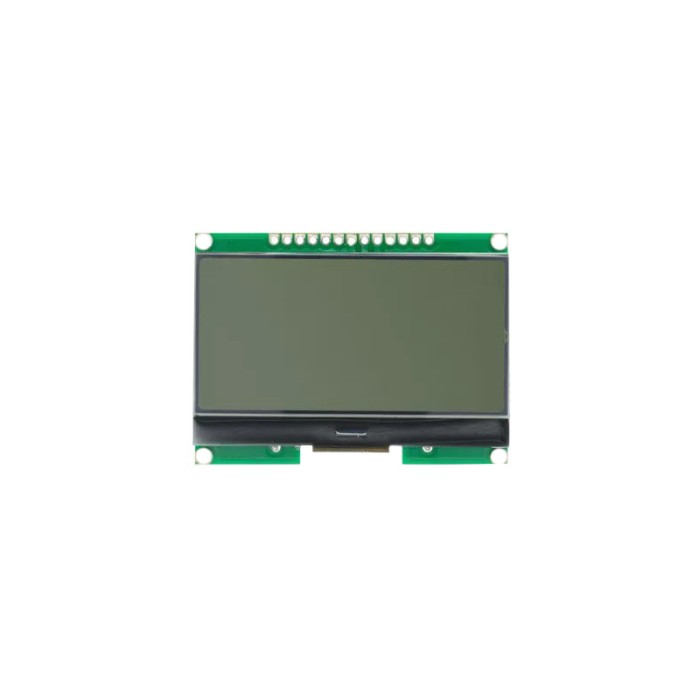

The GMG12864-06D 128x64 Graphical LCD Display is a compact graphical LCD module for clear visual output in electronic projects. It uses a 128x64 pixel resolution and the ST7565R driver IC for crisp display performance. The display operates at 3.3V and supports SPI communication. It includes LED backlight and a high contrast ratio for improved visibility. Its compact size makes it suitable for space-conscious designs.
Features of GMG12864-06D 128x64 Graphical LCD Display
- 128x64 pixel resolution
- ST7565R driver IC
- 3.3V operation
- SPI interface
- LED backlight
- High contrast visibility
Specifications of GMG12864-06D 128x64 Graphical LCD Display
- Model: GMG12864-06D
- Operating Voltage: 3.3V
- Driver IC: ST7565R
- Dimensions: 61.8 x 45.8 x 6.8mm
- Display Size: 48.6 x 24.28mm
- Resolution: 128x64 pixels
- Interface: SPI
- Backlight: LED
- Contrast Ratio: High contrast for clear visibility
- Applications: Embedded systems, handheld devices, medical instruments, industrial controls, and various graphical user interfaces
How to Use GMG12864-06D 128x64 Graphical LCD Display
- Connect the display using the SPI interface.
- Supply 3.3V operating voltage.
- Integrate the module into the target electronic system.
More Info
- Compact graphical LCD module
- Suitable for space-conscious electronic designs
| Model | GMG12864-06D |
|---|---|
| Display Size | 48.6 x 24.28mm |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 128x64 pixels |
| Display Driver | ST7565R |
| Display Interface | SPI |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | LED |
| Operating Voltage (V) | 3.3V |
| Dimensions (mm) | 61.8 x 45.8 x 6.8mm |
