128X64 Dot Matrix COG Graphic LCD Display
SAVE
As low as $2.9500
In stock
Only %1 left
SKU
LCD-01-276
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 13.3 inch Touch Magic Mirror C4 Previous

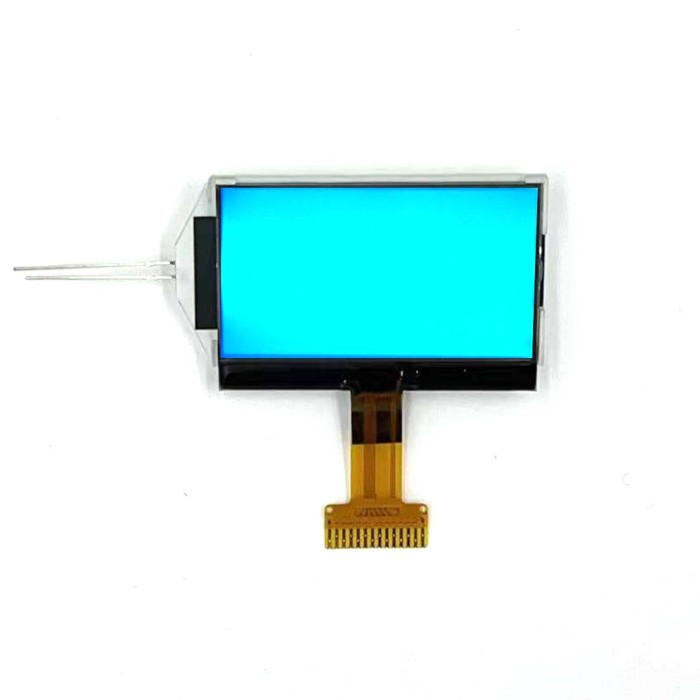

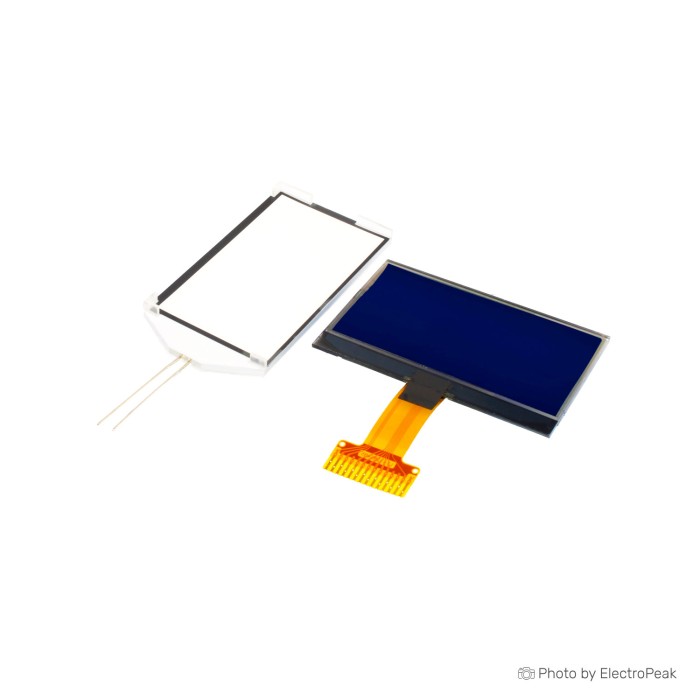

The 128X64 Dot Matrix COG Graphic LCD Display is a monochrome graphic LCD module for clear dot matrix output. It is available with green or blue backlight. This LCD module uses an FPC connection and is designed for compact display applications. It supports a 128x64 dot matrix monochrome image and multiple text display formats. It also features low power consumption and long service life.
Features of 128X64 Dot Matrix COG Graphic LCD Display
- Monochrome 128x64 display
- Green or blue backlight
- FPC connection
- Low power consumption
- Long service life
- Strong command function
Specifications of 128X64 Dot Matrix COG Graphic LCD Display
- Backlight color: Green/Blue (optional)
- Connection: FPC
- Power consumption: 5-100 mV
- Power consumption without backlight: 5 mV
- Power consumption with backlight: Not more than 100 mV
- Display format: 128x64 dot matrix monochrome image
- Text format: 8 words/line * 4 row 16x16 dot matrix characters
- Text format: 16 words/line 8 row 8x8 dot matrix letters, numbers, and symbols
- Input and display modes: Multiple input, display, and change modes
- Interface: 4-wire SPI serial interface
- Operating temperature: -20℃ to 70℃
- Life: 50,000 hours (25℃)
How to Use 128X64 Dot Matrix COG Graphic LCD Display
- Connect the display using the FPC connection.
- Use the 4-wire SPI serial interface if required by your setup.
- Apply the suitable input, display, and change mode for your application.
More Info
- The module has low power consumption and clear display output.
- The display is suitable for compact human-machine communication panels.
| Model | LX-12864B5 |
|---|---|
| Platform | Arduino Uno, Arduino Nano, ESP, Raspberry Pi Pico, STM |
| Display Size | 2.1 inch |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 128x64 |
| Display Driver | ST7567 |
| Display Interface | Parallel, SPI, I2C |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | Green LED |
| Viewing Angle (°) | 6:00 |
| Operating Temp (°C) | -20 to 70 |
| Operating Voltage (V) | 3.3V |
| Pins | 20 |
| Operating Current (mA) | 5mW (backlight off) to 100mW (backlight on) |
