Common Cathode LED - RGB 10mm, 4-pin

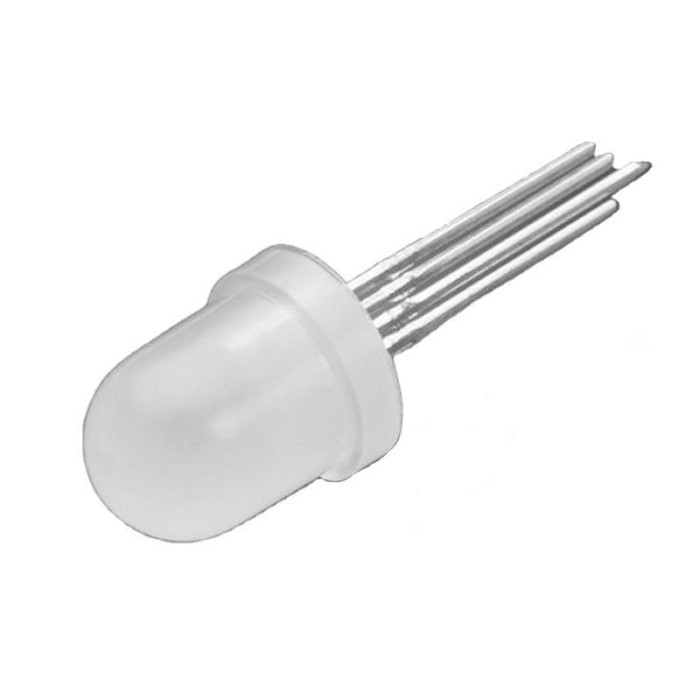

Common Cathode RGB LED - 10mm, 4-Pin is a diffused RGB LED for electronics and lighting projects. It provides red, green, and blue light in a single package. The common cathode design supports RGB control in multi-color applications. Its 10mm size and 4-pin structure make it a compact component for visual indicators, DIY electronics, and Arduino-based projects.

Features of Common Cathode RGB LED - 10mm, 4-Pin

• Common cathode design
• RGB color output
• Diffused light output
• 4-pin package
• Compact 10mm size
• Wide viewing angle

Specifications of Common Cathode RGB LED - 10mm, 4-Pin

• Type: RGB common cathode
• Package: 4 pins
• Size: 10 mm (F10)
• Viewing angle: 120 degrees
• Forward voltage, red: 2.0V - 2.2V
• Forward voltage, green: 3.0V - 3.2V
• Forward voltage, blue: 3.0V - 3.2V
• Current: 20 mA
• Diffused RGB common cathode 4 pins F10 10MM
• F10 RGB LEDs (Common Cathode)

How to Use Common Cathode RGB LED - 10mm, 4-Pin

1. Connect the LED according to the common cathode pin arrangement.
2. Apply the appropriate forward voltage for each color channel.
3. Use the LED in your electronics or indicator circuit.

More Info

• Suitable for DIY LED projects
• Suitable for school science experiments
• Suitable for car decorations
• Suitable for signal indicator applications
• Suitable for Arduino projects
