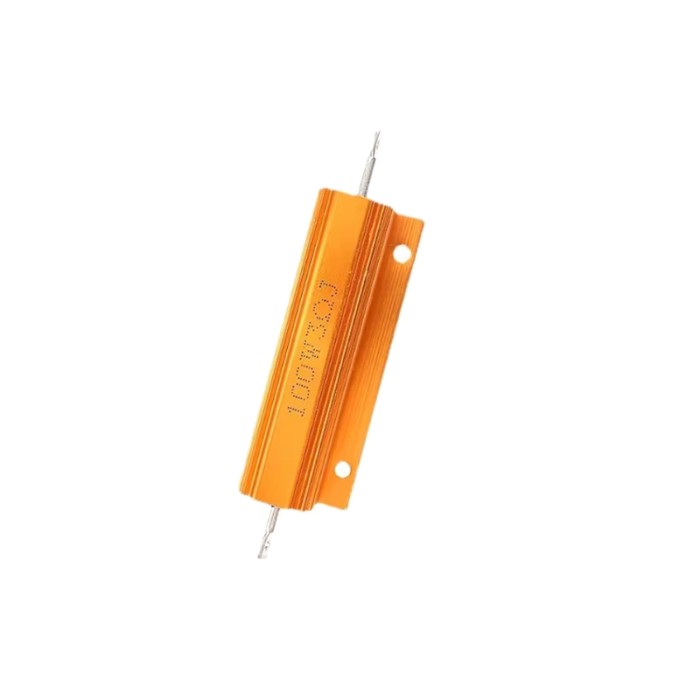

100W Aluminum Shell Cement Resistor

[P1-0708]
Shop with confidence Learn More
Availability: In stock
SKU
P1-0708
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
As low as $0.95

The 100W Aluminum Shell Cement Resistor is a high-power resistor designed for applications requiring robust performance and high heat dissipation. Encased in an aluminum shell, this resistor provides excellent thermal conductivity and durability. Ideal for power supplies, motor drives, and other high-power circuits, it offers reliable operation with a wide resistance range and tight tolerance.

Specifications of 100W Aluminum Shell Cement Resistor

  • Dimensions: 82 x 52 x 29 mm
  • Aluminum Thickness: 1 mm
  • Weight: 160 g
  • Temperature Coefficient: 100 x 10^-6 /°C
  • Maximum Voltage: 2000V
  • Resistance Range: 0.1 - 1KΩ
  • Rated Power at 25°C:
    • 100W (with heatsink)
    • 50W (without heatsink)
  • Allowable Deviation of Resistance Value: ±1%, ±5%
  • Life Cycle: 1000 hours at room temperature
  • Maximum Temperature: 350°C
  • Terminal Strength: 40N
