10inch Capacitive Touch Screen - 6pin, 234x142mm
$12.9500
In stock
SKU
LCD-01-260
Volume discounts:
- +25 4 % $12.4300
- +50 6 % $12.1700
- +100 8 % $11.9100
- +300 10 % $11.6500
- +500 12 % $11.3800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
9inch Capacitive Touch Screen - 6pin, 210x126mm Previous

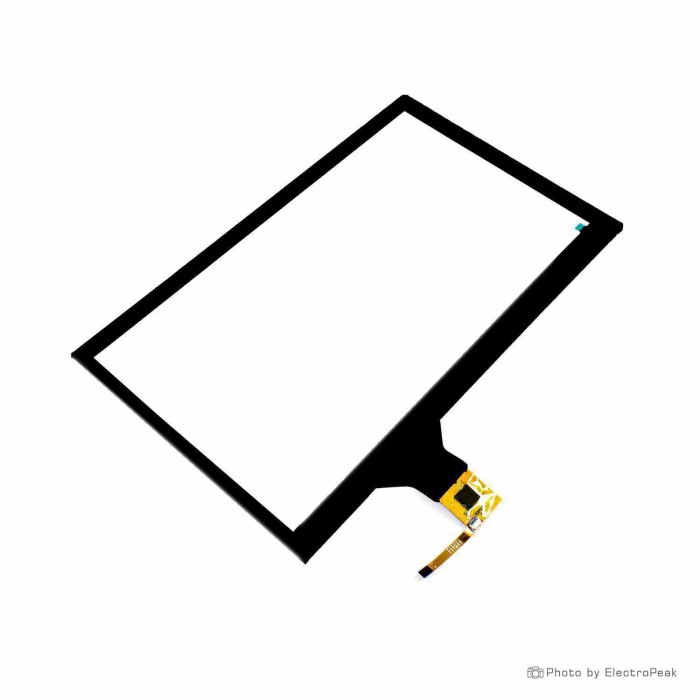

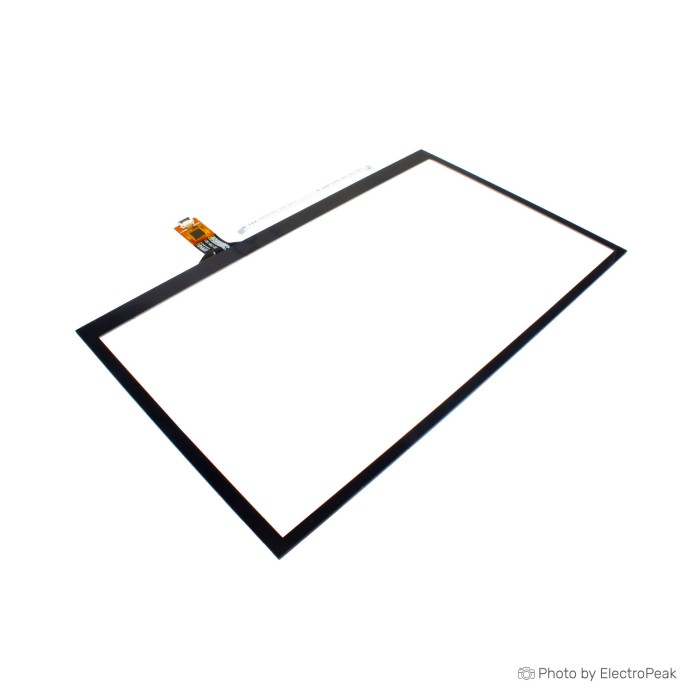

10 Inch Capacitive Touch Screen is a capacitive touch panel for touch-enabled devices and projects. It features a 6-pin connection and supports I2C communication. The screen size is 10 inch, with dimensions of 234 × 142 mm. It uses an FPC connection type and a GT928 touch driver IC. The structure includes hardened glass and sensor layers, along with adhesive materials for assembly.
Features of 10 Inch Capacitive Touch Screen - 6 Pin, 234x142mm
- Capacitive touch technology
- 6-pin connection
- I2C communication
- FPC connection type
- GT928 touch driver IC
Specifications of 10 Inch Capacitive Touch Screen - 6 Pin, 234x142mm
- Type: Capacitive
- Screen Size: 10 inch
- Dimensions: 234 × 142 mm
- Number of Pins: 6
- Pin Pitch: 1 mm
- Communication Protocol: I2C
- Connection Type: FPC
- Touch Driver IC: GT928
- Structure: Harden glass T=0.7+Sensor (0.55mm double-sided coated double shadow eliminating ITO GLASS)+ 3M9495 (T=0.15)+FPC double-sided adhesive (IC)
- Sensor resistance requirements: impedance 90-130/0
- Printing process, using a combination of Optically Clear Adhesive
- Drive voltage: 3.3V
- I2C connection mode, falling edge interrupt, active low reset. The upper left corner of the origin of the coordinate, the resolution of 1024*600 (X*Y)
- IC: GT911
- Driver*Sensor 26*14
- X Pitch *Y pitch 8.54(mm)*9.05(mm)
- light transmittance: >=80%
- Service life: >=1,000,000
- Operating temperature: -0°C~60°C
- Storage temperature: -10°C~70°C
- Surface hardness: >=3H
- NOT SPECIFIED TOLERANCE IS ±O2
How to Use 10 Inch Capacitive Touch Screen - 6 Pin, 234x142mm
- Connect the FPC interface with the 6-pin connection.
- Use the I2C communication mode for data transfer.
- Apply the drive voltage of 3.3V.
More Info
- Resolution: 1024*600 (X*Y)
- Coordinate origin: Upper left corner
