1-8 Cell Lithium Battery Level Indicator Module
SAVE
As low as $0.5100
In stock
Only %1 left
SKU
ELC-16-032
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TM1637 4-Digit 7-Segment Display Module Previous

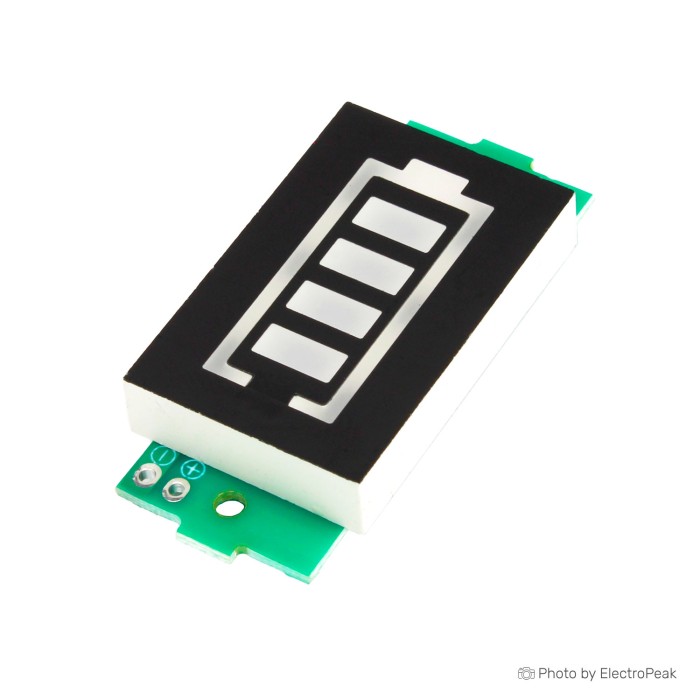

The 1-8 Cell Lithium Battery Level Indicator Module is a compact module for monitoring lithium-ion and lithium-polymer battery voltage. It provides a visual bar graph display of the battery charge level for 1 to 8 cells. The module is designed for direct connection to battery balance connector or voltage tap points. A jumper on the back is used to set the number of lithium cells. It uses a 4 bar-graph indicator for charge display. The display color is green or blue.
Features of 1-8 Cell Lithium Battery Level Indicator Module
- 1 to 8 cell monitoring
- Visual battery level display
- Direct battery connection
- Jumper-based cell setting
- 4 bar-graph indicator
- Green or blue display color
Specifications of 1-8 Cell Lithium Battery Level Indicator Module
- Battery compatibility: Lithium-ion (Li-ion) or lithium-polymer (LiPo) batteries with 1 to 8 cells
- Voltage range: 3.3V to 28.8V (1S to 8S)
- Display: LED bar graph or segmented display indicating battery voltage levels
- Connection: Direct connection to the battery's balance connector or voltage tap points
- Default cell setting: 1-cell
- Indicator type: 4 Bar-graph
- Display color: Green, Blue
- Dimensions: 45x20x8mm
- Mounting hole: M2 screw
- Operating temperature: -10℃ to 60℃
- Weight: 5 grams
How to Use 1-8 Cell Lithium Battery Level Indicator Module
- Connect the module to the battery positive and negative terminals or to the balance connector.
- Set the cell count using the jumper on the back of the module.
- Read the battery charge level from the visual bar display.
More Info
- Designed for lithium battery charge status display
- Suitable for direct voltage level monitoring
