1.8inch 1-Digit 7-Segment Display - Common Cathode
$0.6600
In stock
SKU
LCD-01-053
Volume discounts:
- +50 6 % $0.6200
- +100 8 % $0.6100
- +300 11 % $0.5900
- +500 14 % $0.5700
- +1000 17 % $0.5500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 10.1inch 1280x800 IPS HDMI LCD Type B With Case Previous

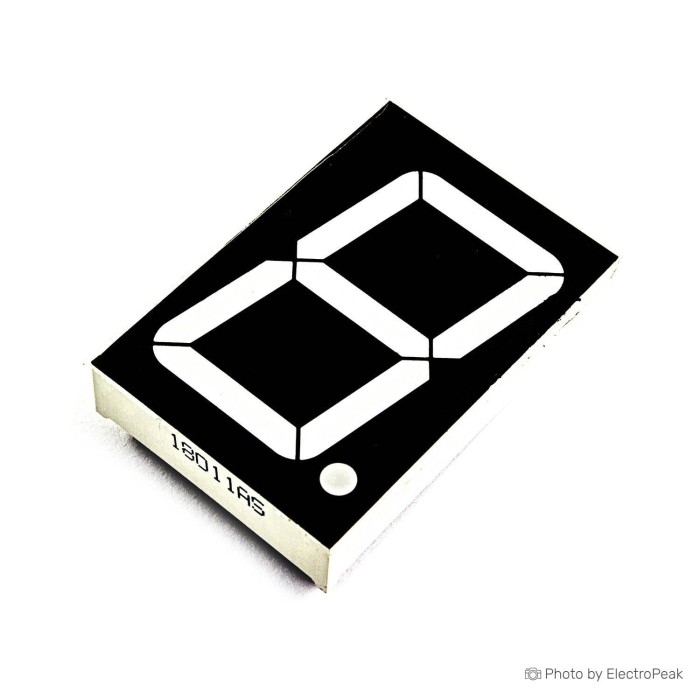

The 1.8 inch 1-digit 7-segment display is a numeric display component for electronics projects. It is a common cathode 7-segment LED display with a decimal point. The display size is 1.8 inch, and the model is 18011AS. It is designed as a 1-digit display and is available in red. The viewing angle is wide, and the larger format improves visibility from a distance. This 7-segment display is suitable for digital panels, counters, and clocks.
This product includes a pair of 1.8-inch 7-segment LEDs. It is available as a common cathode and common anode pair. The module uses 10 pins with a standard 0.1" (2.54mm) pitch.
Features of 1.8 Inch 1-Digit 7-Segment Display - Common Cathode, 1.8V
- Common cathode type
- 1-digit display
- 7 segments plus decimal point
- Wide viewing angle
- Red light color
- Large 1.8 inch format
Specifications of 1.8 Inch 1-Digit 7-Segment Display - Common Cathode, 1.8V
- Model: 18011AS
- Digit count: 1 digit
- Display size: 1.8 inch
- Dimensions: 38x56 mm
- Segment count: 7 segments + decimal point
- Light color: Red
- Viewing angle: Wide
- Forward voltage: 1.8V
- Segment current: 10 to 20mA per segment
- 2x 1.8-inch 7-segment LEDs
- 1 Digit, Red, A Pair of Common Cathode and Common Anode
- 10 pins
- Pitch: standard 0.1" (2.54mm)
How to Use 1.8 Inch 1-Digit 7-Segment Display - Common Cathode, 1.8V
- Connect the display using the 10-pin interface.
- Drive each segment through its individual pin.
- Use the common cathode connection as required.
More Info
- Suitable for digital panels
- Suitable for counters
- Suitable for clocks
