1.12inch OLED Display - SPI, 12 Pin, SH1107 Driver (White)
$2.9500
In stock
SKU
LCD-01-218
Volume discounts:
- +25 4 % $2.8300
- +100 6 % $2.7700
- +300 8 % $2.7200
- +500 10 % $2.6600
- +1000 12 % $2.6000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
1.29inch OLED Display - SPI/IIC/Parallel, 30 Pin, SSD1315 Driver (Blue) Previous

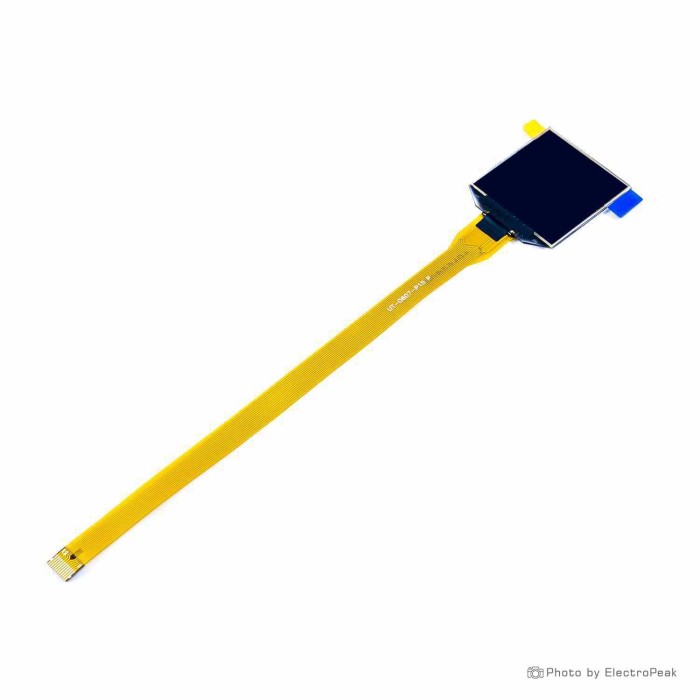

The 1.12-inch white OLED display with SH1107 driver and SPI interface is an efficient, high-contrast screen suitable for portable devices, medical equipment, and industrial control panels. It offers a crisp 128x128 pixel resolution and comes with a long 12-pin flat cable (Plug In type) for convenient integration into embedded systems.
Operating at 3.3V logic and 13.5V display voltage, this display performs well in a wide temperature range of -40 to +70°C. Its compact form factor and energy efficiency make it ideal for space-constrained projects requiring clear monochrome visuals.
Specifications of 1.12 inch SPI White OLED Display with SH1107 Driver
- Type: PM OLED Display
- Size: 1.12 inches (actual: 1.09 inches)
- Resolution: 128 x 128 pixels
- Driver Chip: SH1107
- Display Color: Single Color (White)
- Working Voltage: 3.3 V
- Display Voltage: 13.5 V
- Interface Type: SPI
- Number of Pins: 12
- Pin Distance: 0.5 mm
- Display Area: 20.076 x 20.076 mm
- Physical Size: 25.90 x 30.10 x 1.25 mm
- Pixel Pitch: 0.157 x 0.157 mm
- Working Temperature: -40 to +70 °C
| Platform | Arduino, ESP, Raspberry Pi Pico, STM |
|---|---|
| Display Size | 1.12 inch |
| Display Size Range | 1 inch to 1.99 inch |
| Display Resolution | 128 X 128 |
| Display Driver | SH1107 |
| Display Interface | SPI |
| Panle Type | PM OLED |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Viewing Angle (°) | >160° |
| Operating Temp (°C) | -40 - 70 °C |
| Operating Voltage (V) | 3.3V |
| Pins | 12 |
| Dimensions (mm) | 25.90 X 30.10 X 1.25 mm; 20.076 X 20.076 mm |
| Pitch (mm) | 0.5 mm |
| Pixel Pitch | 0.157 X 0.157 mm |
