0.96inch 128x64 SPI OLED Display Module - Yellow and Blue
$1.9700
In stock
SKU
LCD-01-099
Volume discounts:
- +50 5 % $1.8800
- +100 7 % $1.8400
- +300 9 % $1.8000
- +500 11 % $1.7600
- +1000 13 % $1.7100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
8x8 Dot Matrix LED Display - Red Previous

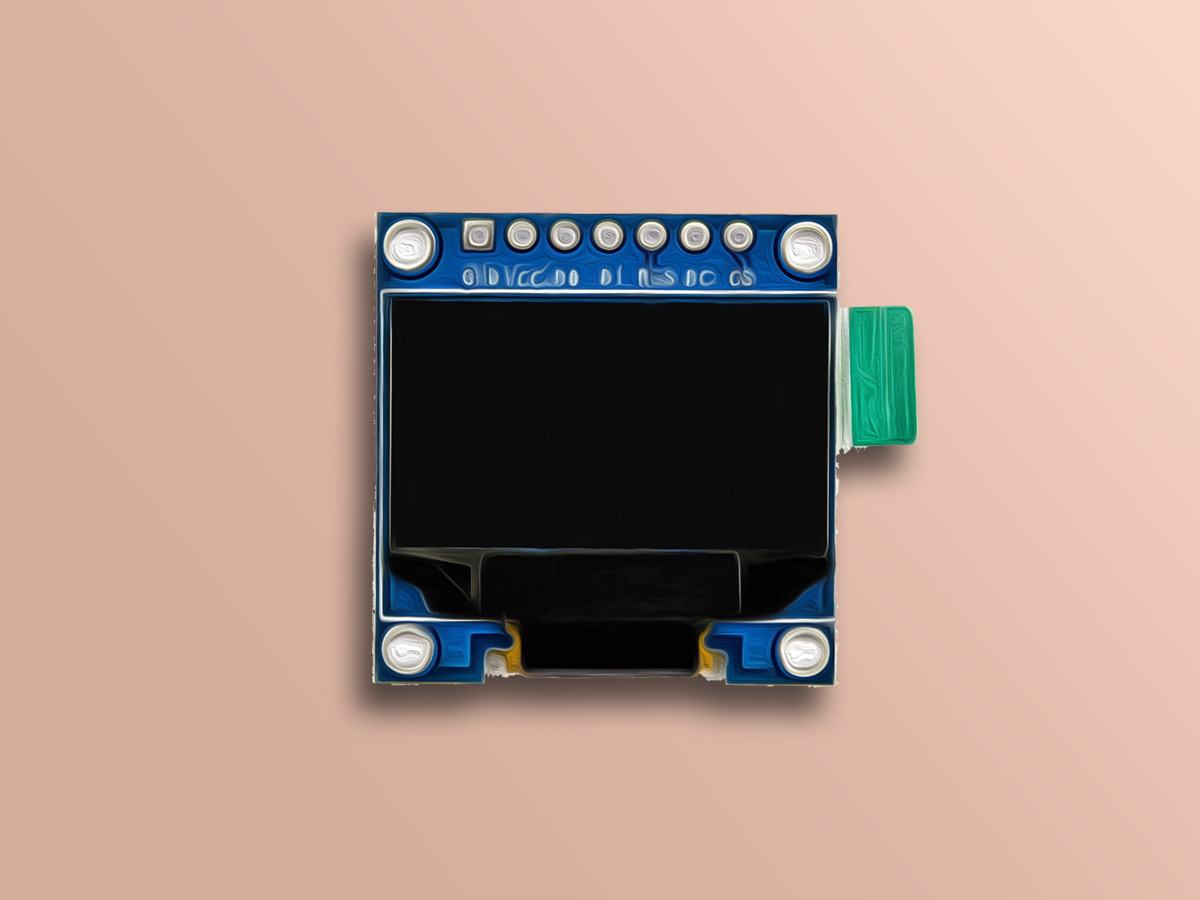

The 0.96Inch 128X64 SPI OLED Display Module - Yellow And Blue is a compact OLED display module for electronics projects. It uses an SSD1306 driver chip and SPI communication for simple integration with microcontrollers and microprocessors. The display offers a 128x64 resolution and a 160-degree viewing angle. It operates without backlight, with each pixel emitting its own light. This module is suitable for display-based electronics and robotics builds where a small OLED display is needed.
Features of 0.96Inch 128X64 SPI OLED Display Module - Yellow And Blue
- 0.96-inch OLED display
- 128x64 pixel resolution
- Yellow and blue display colors
- SSD1306 driver chip
- SPI communication interface
- 160-degree viewing angle
- Backlight-free operation
- Self-emitting pixels
Specifications of 0.96Inch 128X64 SPI OLED Display Module - Yellow And Blue
- Display size: 0.96 inch
- Resolution: 128x64 pixels
- Viewing angle: 160 degrees
- Driver chip: SSD1306
- Communication protocol: SPI
- Supply voltage: 2.5 to 5 volts DC
- Current consumption: 20 milliamperes
- Dimensions: 27x27x4 mm
How to Use 0.96Inch 128X64 SPI OLED Display Module - Yellow And Blue
- Connect the module to your microcontroller or microprocessor using the SPI interface.
- Apply a supply voltage within the specified range.
- Use an SSD1306-compatible library to control the display.
More Info
- The display operates without a backlight.
- The module is described with SPI and I2C interface variants in the provided content.
| Display Size | 0.96 inch |
|---|---|
| Display Size Range | 0.99 inch and smaller |
| Display Resolution | 128x64 pixels |
| Display Driver | SSD1306 |
| Display Interface | SPI |
| Panle Type | PM OLED |
| Display Color Type | Yellow and Blue |
| Touchscreen Type | None |
| Backlight Type | None |
| Viewing Angle (°) | 160 degrees |
| Operating Voltage (V) | 2.5 to 5V DC |
| Operating Current (mA) | 20 mAnDimensions: 27x27x4 mm |
