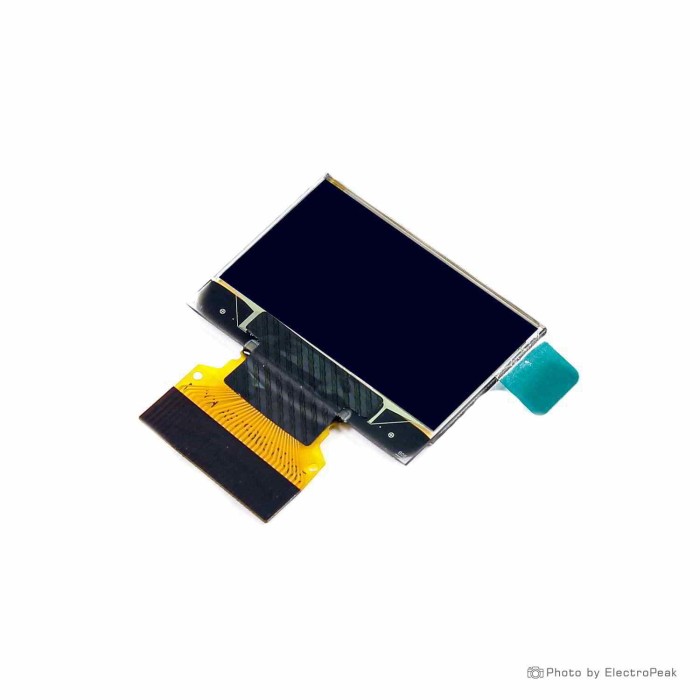

0.96inch OLED Display - SPI/IIC/Parallel, 30 Pin, SSD1306 Driver (Blue)

$1.5000
Out of stock
SKU
LCD-01-209
Volume discounts:
  • +100 6 % $1.4100
  • +300 8 % $1.3800
  • +500 10 % $1.3500
  • +1000 13 % $1.3100
Shop with confidence Learn More
0.96inch OLED Display - SPI/IIC/Parallel, 30 Pin, SSD1306 Driver (Yellow and Blue) Previous 0.96inch OLED Display - SPI/IIC/Parallel, 30 Pin, SSD1306 Driver (Yellow and Blue)
More Information
PlatformArduino, ESP, Raspberry Pi Pico, STM
Display Size0.96 inches
Display Size Range0.99 inch and smaller
Display Resolution128 X 64
Display DriverSSD1306
Display InterfaceParallel, SPI, I2C
Panle TypePM OLED
Display Color TypeMonochrome
Touchscreen TypeNone
Backlight TypeNone
Viewing Angle (°)>160°
Operating Temp (°C)-40 - 70 degrees
Operating Voltage (V)3.3V
Pins30
Dimensions (mm)26.70 X 19.26 X 1.4 (mm); 21.744 X 10.864 (mm)
Pitch (mm)0.5 (mm)
Pixel Pitch0.17 X 0.17 (mm)
