0.69inch OLED Display - IIC, 14 Pin, SSD1306 Driver (White)
$0.9500
In stock
SKU
LCD-01-195
Volume discounts:
- +50 4 % $0.9100
- +100 6 % $0.8900
- +300 7 % $0.8800
- +500 9 % $0.8600
- +1000 12 % $0.8400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0.71inch OLED Display - IIC, 14 Pin, SSD1306 Driver (White) Previous

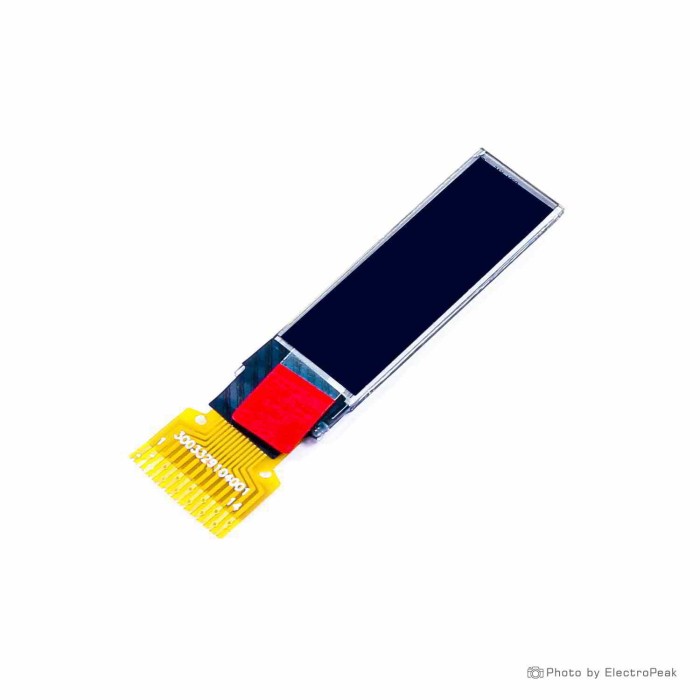

The 0.69-inch white OLED display with SSD1306 driver and I2C interface is an ultra-compact and power-efficient screen designed for microcontroller-based projects. With a resolution of 96x16 pixels, it is ideal for displaying short texts and basic graphics, offering sharp contrast and high clarity.
Thanks to its low power consumption, small size, and wide temperature range, this display is an excellent fit for IoT applications, wearable electronics, status monitors, and other portable digital systems. The 14-pin flat cable makes it easy to integrate with various development boards.
Specifications of 0.69 inch IIC White OLED Display with SSD1306 Driver
- Type: PM OLED Display
- Size: 0.69 inches
- Resolution: 96 x 16 pixels
- Driver Chip: SSD1306
- Display Color: Single Color (White)
- Working Voltage: 3.3 V
- Interface Type: I2C
- Number of Pins: 14
- Pin Distance: 0.62 mm
- Display Area: 17.26 x 3.18 mm
- Physical Size: 26.3 x 8 x 1.2 mm
- Pixel Pitch: 0.18 x 0.2 mm
- Working Temperature: -40 to +85 °C
| Platform | Arduino, ESP, Raspberry Pi Pico, STM |
|---|---|
| Display Size | 0.69 |
| Display Size Range | 0.99 inch and smaller |
| Display Resolution | 96x16 |
| Display Driver | SSD1306 |
| Display Interface | I2C |
| Panle Type | PM OLED |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Temp (°C) | -40 to 85 |
| Operating Voltage (V) | 3.3V |
| Pins | 14 |
| Dimensions (mm) | 26.3 x 8 x 1.2 mm; 17.26 x 3.18 mm |
| Pitch (mm) | 0.62 mmnIncludes 14-pin FPC flat cable |
| Pixel Pitch | 0.18 x 0.2 mm |
