0-100A 50-500V AC Square LED Digital Voltage and Current Meter
SAVE
As low as $3.2500
In stock
Only %1 left
SKU
SEN-04-064
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GL-KH16AL1.0 Non-Invasive AC Current Sensor Previous

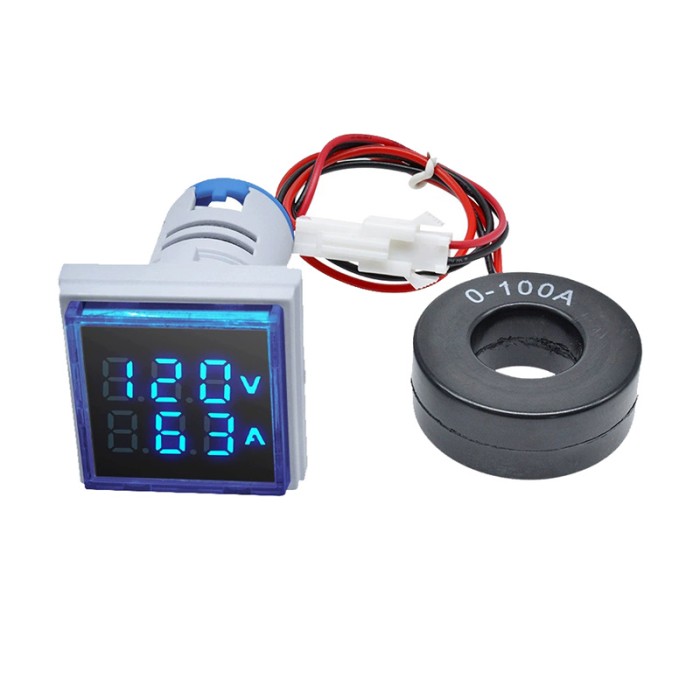

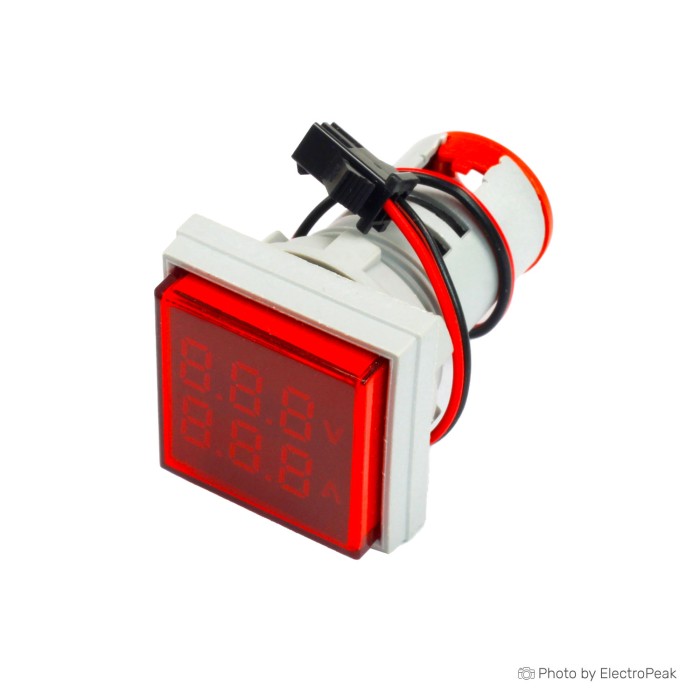

The 0-100A 50-500V AC Square LED Digital Voltage and Current Meter is a compact and versatile device designed for monitoring both voltage and current in AC systems. Available in various colors including Red, White, Green, Blue, and Yellow, this meter is ideal for use in various applications such as motorbikes, boats, and industrial equipment. It features a clear LED display for easy reading and installs in a 22mm mounting hole, making it convenient for integration into panels. This meter is perfect for ensuring the stability and safety of electrical systems.
Specifications of Square LED Digital Voltage and Current Meter
-
Model: Square Digital Voltmeter Ammeter
-
Material: Plastic
-
Color Options: Red / White / Green / Blue / Yellow
-
Installation Size: 22mm (0.87 inches)
-
Current Range: 0-100A
-
Measurement Range: AC 50-500V
-
Input Voltage: AC 60-500V
-
Working Temperature: 0°C ~ 50°C
-
Display size: 29x29mm
-
Dimensions: 51x20mm
Datasheet of Square LED Digital Voltage and Current Meter
| Operating Voltage (V) | 60-500V AC |
|---|---|
| Operating Temp (°C) | 0°C ~ 50°C |
| Dimensions (mm) | 51x20mm |
| Mounting Type | Panel Mount |
| Current Range (A) | 0-100A |
| Voltage Range (V) | 50-500V AC |
| Material | Plastic |
| Model | Square Digital Voltmeter Ammeter |
| Display Type | LED |
| Parameters | Current, Voltage |
