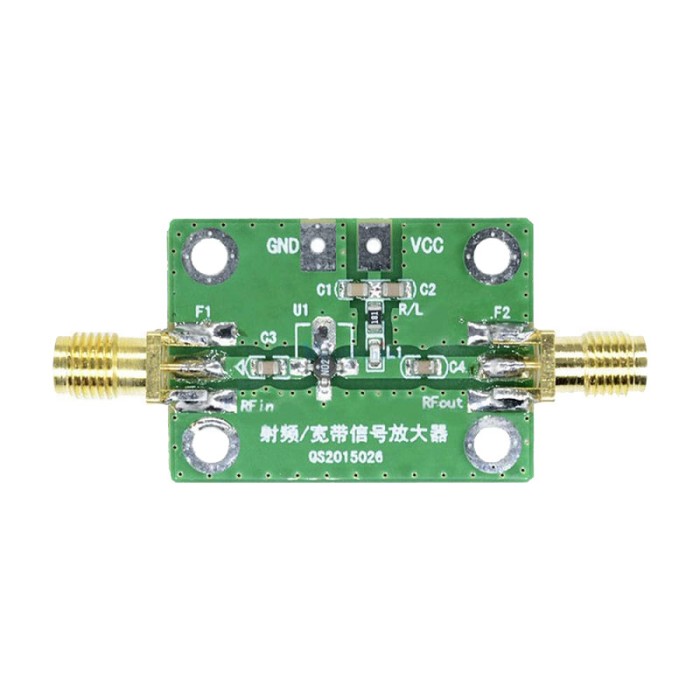

0.1-2000MHz RF Wideband Amplifier High Gain 30dB LNA
$2.2600
In stock
SKU
COM-01-034
Volume discounts:
- +50 4 % $2.1600
- +100 7 % $2.1100
- +300 8 % $2.0700
- +500 11 % $2.0200
- +1000 13 % $1.9700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The 0.1-2000MHz RF Wideband Amplifier is a high-gain, low-noise amplifier ideal for RF signal enhancement. With a gain of up to 32dB at low frequencies, this amplifier is designed for stable performance across a wide frequency range. It is suitable for radio frequency (RF) front-end circuits, automatic gain control systems, and other signal boosting applications.
Specifications of 0.1-2000MHz RF Wideband Amplifier High Gain 30dB LNA
- Operating Frequency: 0.1-2000MHz
- Maximum Power Output: +10dBm (10mW) @1dB Compression Point
- Power Supply Voltage: 6-12V DC
- System Impedance: 50Ω
- Gain Performance:
- 0.1MHz: 32dB
- 500MHz: 31dB
- 1000MHz: 29dB
- 1500MHz: 25dB
- 2000MHz: 20dB
- PCB Size: 25mm x 52mm
- Connector Diameter: 5mm
Tips for Usage
- Gain Adjustment: Increasing the power supply voltage (5-8V) allows variable gain control, ideal for RF receive front-end circuits.
- Capacitance Adjustment: Changing input/output capacitor values can extend the low-frequency limit. For example, 10µF capacitors allow operation down to 5kHz.
- For optimal gain stability and minimal noise, operate at 8-10V with a gain up to 30dB.
- Maximum gain (32.5dB) is achieved at 12V supply voltage.
Development Resources of 0.1-2000MHz RF Wideband Amplifier High Gain 30dB LNA
Datasheet: Not available.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 6-12V DC |
| Dimensions (mm) | 25mm x 52mm |
| Connector | SMA |
| Antenna Connector | SMA |
| Wireless Protocol | RF (Radio Frequency) |
| Frequency Band | 0.1-2000 MHz |
| Encryption | None |
| Channels | 1-channel |
| Chipset | LNA |
| Application | Automatic Gain Control (AGC) systems, RF Front-end circuits |
