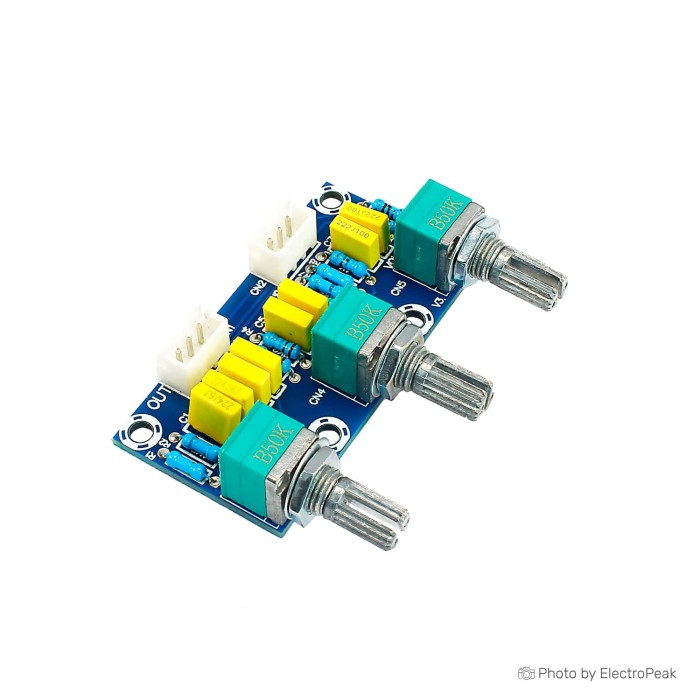

XH-M802 Passive Tone Volume Bass Preamplifier Board
$1.2500
In stock
SKU
SEN-17-151
Volume discounts:
- +100 6 % $1.1700
- +300 8 % $1.1500
- +500 10 % $1.1200
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
INMP441 MEMS Microphone Module- I2S interface
Previous
This tuning version of passive tuning board, the main function of the input audio signal for high and low frequency adjustment, and then sent to the amplifier board to enlarge
The principle of the product is that the audio signal is directly filtered through the RC filter to get the desired high and low sound through the RC capacitor. The tone board does not need power supply, but the volume after processing will be much smaller.
Specifications of XH-M802 Passive Preamplifier Tone Board HiFi Bass:
- Adjustable items: total volume treble bass
- Number of channels: 2-channel
- Knob spacing: 22.5mm
- Socket type: XH2.54 ~ 3P
- Appearance size: 56.28mm
