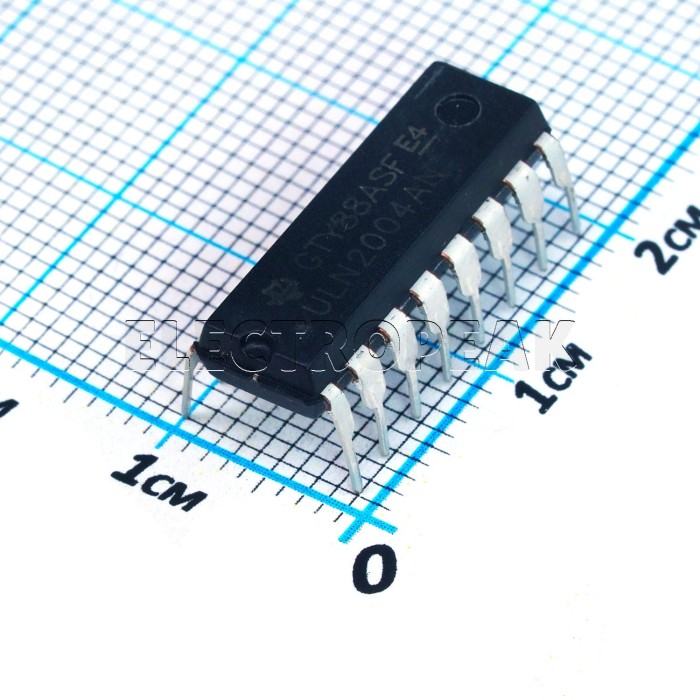

ULN2004 DIP, Darlington Transistor, DIP-16
$0.1150
In stock
SKU
S3-0003
Volume discounts:
- +100 3 % $0.1110
- +500 6 % $0.1080
- +1000 8 % $0.1060
- +5000 10 % $0.1040
- +10000 11 % $0.1020
ULN2004 DIP, Darlington Transistor, DIP-16 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
The ULN2004 transistor is an NPN Darlington array consisting of seven individual Darlington transistors. This chip is available in a DIP-16 package and is suitable for controlling high-current loads such as relays, motors, and LED displays.
Specifications of ULN2004 Transistor
- Transistor Type: NPN Darlington Array
- Number of Transistors: 7
- Collector-Emitter Voltage (Vceo): 50 volts
- Collector Current (Ic): 500 milliamperes
- Current Gain (hFE): Minimum 1000
- Power Dissipation (Pd): Maximum 2 watts
- Operating Temperature: From -40 to +105°C
- Package: DIP-16
| Package | DIP-16 |
|---|---|
| Packaging | Tube |
| Operating Temperature Max | 70 C° |
| Polarity | NPN Type |
| Mounting Type | Through Hole |
| Components - Type | Darlington Transistors |
