UL2003 4-Phase Stepper Motor Driver
$0.3500
In stock
SKU
MTR-09-004
Volume discounts:
- +100 4 % $0.3370
- +500 6 % $0.3300
- +1000 8 % $0.3230
- +5000 9 % $0.3170
- +10000 11 % $0.3100
Product Variations:
View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
L298N Dual-Channel DC/Stepper Motor Driver
Previous
Description

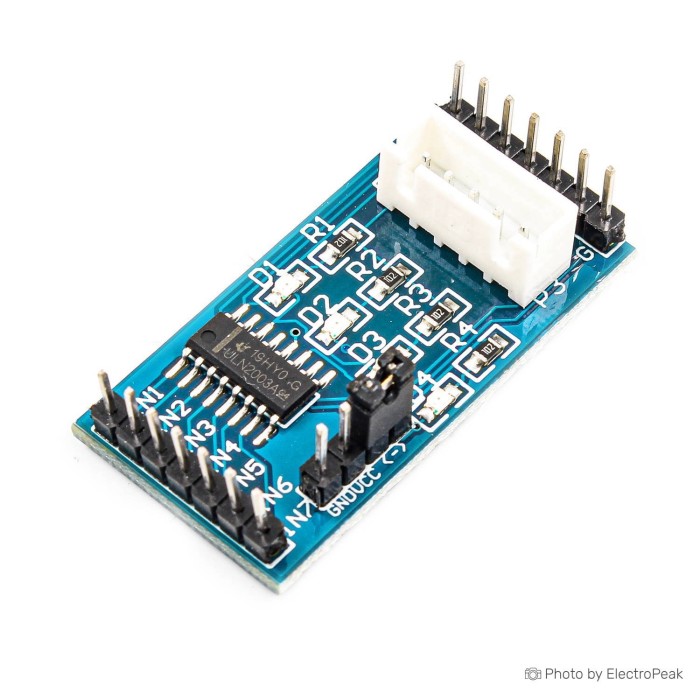

Onboard ULN2003A motor driver chip, All pins of the chip are taken for easy connection, Onboard 4-channel signal indicator,Onboard XH-5P socket, can directly connect 28BYJ-48 type stepper motor
Features
Rated Voltage: DC5V-12V
4-phase
Reduction Ratio: 1/64
Step Torque Angle: 5.625°/64
DC Resistance: 200ω±7% (25°)
Insulation Resistance: >10Mω (500V)
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40 K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct .
