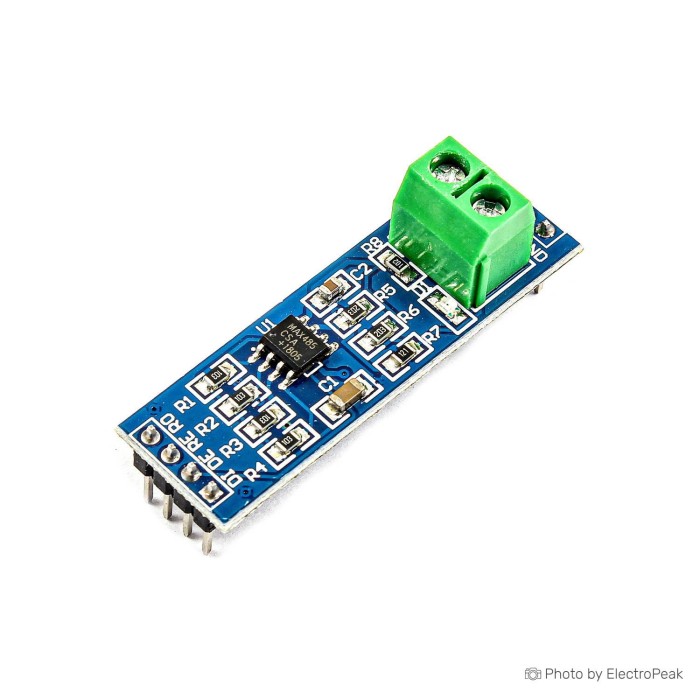

MAX485 TTL to RS485 Converter Module
$0.2650
In stock
SKU
COM-05-036
Volume discounts:
- +100 4 % $0.2550
- +500 6 % $0.2500
- +1000 8 % $0.2450
- +5000 9 % $0.2400
- +10000 11 % $0.2350
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
MAX3232 RS232 To TTL Mini Converter Module
Previous
The MAX485 TTL to RS485 Converter Module is a versatile and compact communication interface solution that allows seamless data transmission between devices with TTL-level signals and those using RS485 communication standards. With its small dimensions of 45mm x 15mm x 14mm and a set of pins for easy connection, this module is an excellent choice for various industrial and automation applications, enabling reliable and noise-immune data exchange.
Specificatoins of MAX485 TTL to RS485 Converter Module:
- Type: TTL to RS485 Converter Module
- Dimensions: 45mm x 15mm x 14mm
- Communication Standard: RS485
- Voltage Supply: 5V DC
- Operating Voltage: 3.3V to 5V DC
- Signal Pins: RO (Receiver Output), RE (Receiver Enable), DE (Driver Enable), DI (Driver Input), GND (Ground), VCC (Voltage Supply), B (RS485 Signal B), A (RS485 Signal A)
- Baud Rate: Adjustable
- Data Direction Control: Automatic Direction Control
- Data Rate: Up to 2.5 Mbps
- Driver Type: Half-Duplex
- Termination: Built-in 120-Ohm Resistor Network
- Indicators: Power and Data Transmission LEDs
Features of MAX485 TTL to RS485 Converter Module:
- Bidirectional Communication: The module supports bidirectional communication, allowing data to be transmitted and received over the RS485 network.
- Wide Operating Voltage: Compatible with voltage supplies ranging from 3.3V to 5V DC, making it versatile for various microcontroller and device interfaces.
- Automatic Direction Control: The module automatically controls the data direction (RO and DI) to facilitate half-duplex communication without the need for manual switching.
- Usage Tip:
- Connect the module to your microcontroller or controller of choice following the pinout diagram, and configure the communication parameters accordingly for seamless data transfer.
- Caution:
- Ensure the correct voltage supply (between 3.3V and 5V DC) to avoid damaging the module.
- Pay attention to the RS485 signal polarity when connecting to other devices in the network.
Write Your Own Review
